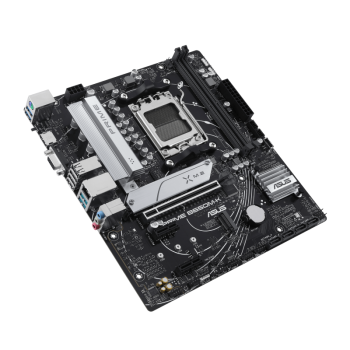

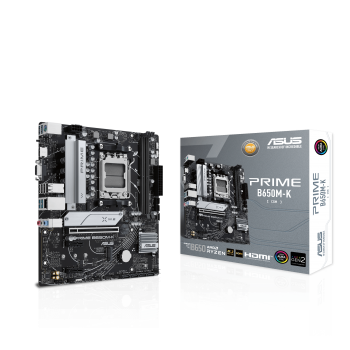

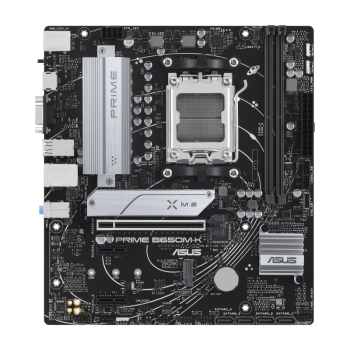

ASUS PRIME B650M-K DDR5 AMD Ryzen Gaming Motherboard

• AM5 Socket for AMD Ryzen™ Desktop Processors
• Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C^®
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

TECH SPECS:

Model

PRIME B650M-K

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*


Chipset

AMD B650 Chipset

Memory

2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen^™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site
** Specifications vary by CPU types.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen^™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

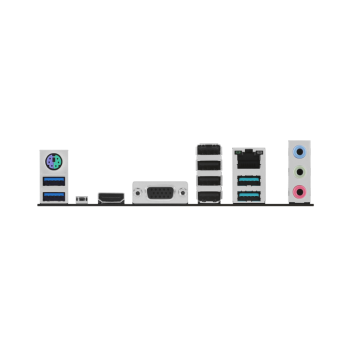

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
-  M.2 heatsink
-  VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^™ button
- BIOS FlashBack^™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw Package for M.2 SSD
Documentation
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
