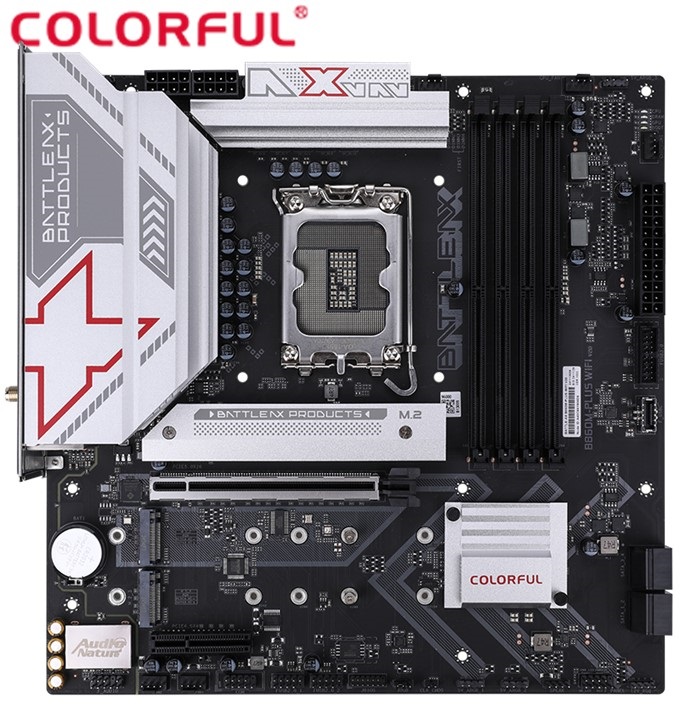

COLORFUL BATTLE-AX B860M-PLUS WIFI V20 Intel Gaming Motherboard
The Battle Axe Black Blade series features a custom Frost cooling armor with a full-coverage condenser plate for enhanced heat dissipation.
Employs a 10+1+1+1 phase enhanced power supply (Dr MOS 60A)
It provides one PCIe 5.0 x4 M.2 SSD slot and two PCIe 4.0 x4 M.2 SSD slots.
Provides one USB 3.2 Gen 2x2 20Gbps Type-C high-speed rear port.
It features a Realtek 2.5G high-speed wired network card and an AX101 WiFi 6 wireless network card, and supports Bluetooth 5.2.
Supports iGame Center lighting control software, allowing simultaneous adjustment of lighting effects for the heatsink, cooling fans, and memory.
Six protective technologies ensure more stable product operation.
200 rigorous testing processes ensure quality.
PCB atomization process fully upgraded
TECH SPECS:
Product Model BATTLE-AX B860M-PLUS WIFI V20
Product Series Battle Axe series
Chipset Intel B860
CPU support Supports Intel® Core™ Ultra processors compatible with LGA 1851 socket motherboards
Memory support Provides 4 DDR5 memory slots, supporting up to 192 GB of memory (up to 48 GB per slot)
- Supports DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory
- Supports Intel® Extreme Memory Profile (XMP) memory technology
- Supports dual-channel memory technology
Storage interface It supports a total of 3 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, and supports the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices.
- M.2_1 slot: Supports 2242/2260/2280 form factor M.2 SSDs (PCIe 5.0 x4, CPU lane)
- M.2_2 slot: Supports 2242/2260/2280/22110 form factor M.2 SSDs (PCIe 4.0 x4, PCH lane)
- M.2_3 slot: Supports 2242/2260/2280/22110 form factor M.2 SSDs (PCIe 4.0 x4, PCH lane)
(*For detailed steps on creating RAID disk arrays, please refer to Colorful's official BIOS user guide.)
Extension Interface Rear I/O Ports:
- 2 USB 2.0 ports
- 4 USB 3.2 Gen 1 5Gbps Type-A ports -
1 USB 3.2 Gen 1 5Gbps Type-C port -
1 USB 3.2 Gen 2x2 20Gbps Type-C port
- 1 DP 1.4 port, supporting up to 8K 60Hz resolution
- 1 HDMI 2.0 port, supporting up to 4K 60Hz resolution
- 1 2.5G network port -
2 Wi-Fi 6 antenna ports
- 3 audio ports (audio input/audio output/microphone)
Onboard Device Ports:
- 2 USB 2.0 headers (expandable to 4 USB 2.0 Type-A ports) -
1 USB 3.2 Gen 1 header (expandable to 2 USB 3.2 Gen 1 5Gbps Type-A ports) -
1 USB 3.2 Gen 2 Type-C slot (expandable to 1 USB 3.2 Gen 2 10Gbps port) Type-C Interface
- 1 CPU Fan Pin
- 3 System Fan Pins -
1 Water Pump Pin -
3 5V 3-pin ARGB Pins -
1 12V 4-pin RGB Pin -
1 Front Audio Pin
- 1 Front Panel Pin -
1 Speaker Pin
- 1 Serial Port Pin
- 1 Clear CMOS Jumper -
1 BIOS Programmer Pin -
1 RGB Lighting Control Jumper
Expansion slots One PCIe 5.0 x16 slot and
one PCIe 4.0 x4 slot
System BIOS 256M UEFI, supports multiple languages
Power Management Supports S3, S4, and S5 wake-up from the network; supports scheduled power-on and power-on upon incoming call.
Hardware monitoring CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, System temperature monitoring, and voltage monitoring for each group.
Onboard network card RTL8125BG 2.5Gbit Ethernet adapter, AX101 WiFi 6 wireless network adapter, Bluetooth 5.2
Onboard sound card The Realtek ALC897 high-fidelity decoding chip supports 5.1 channels.
Motherboard Specifications M-ATX form factor
245mm x 245mm
