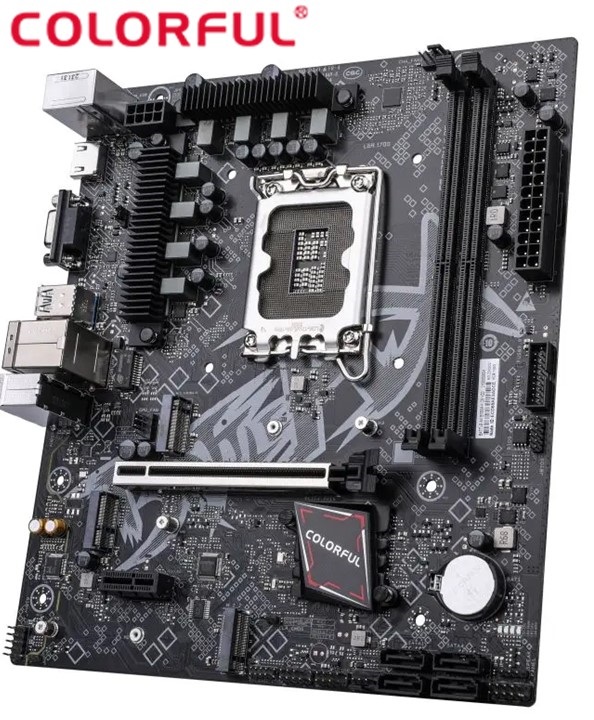

COLORFUL BATTLE-AX B760M-K D5 V20 Intel Gaming Motherboard
Model
BATTLE-AX B760M-K D5 V20
Product Series
BATTLE-AX series
Chipset
Intel B760
Processor
Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
Memory
2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Intel is supported ® Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
SATA Ports
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_2 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Board I/O
Rear I/O:
- 2×USB 2.0 interfaces
- 4×USB 3.2 Gen 1 Type-A interfaces
- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
- 1×VGA interface
- 1×PS.2 interface
- 1×gigabit network interface
- 3×audio interfaces(audio input/audio output/microphone)
On board:
- 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
- 1×CPU fan pin
- 2×System fan pins
- 1×Front audio pin
- 1×Front panel pin
- 1×Spraker pin
- 1×COM port pin
- 1×ME write protection jumper
- 1×Clear CMOS jumper
- 1×BIOS burner pin
- 1×POST card pin
- 1×Wake-up control jumper
Expansion Slots
1×PCIe 4.0 x16 slot
1×PCIe 3.0 x1 slot
BIOS
128M UEFI, support multiple languages
Power Management
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor
CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN
RTL8111H Gigabit Network Card
Audio
5.1 Channel sound card
Configuration
M-ATX
236 x 207 mm
