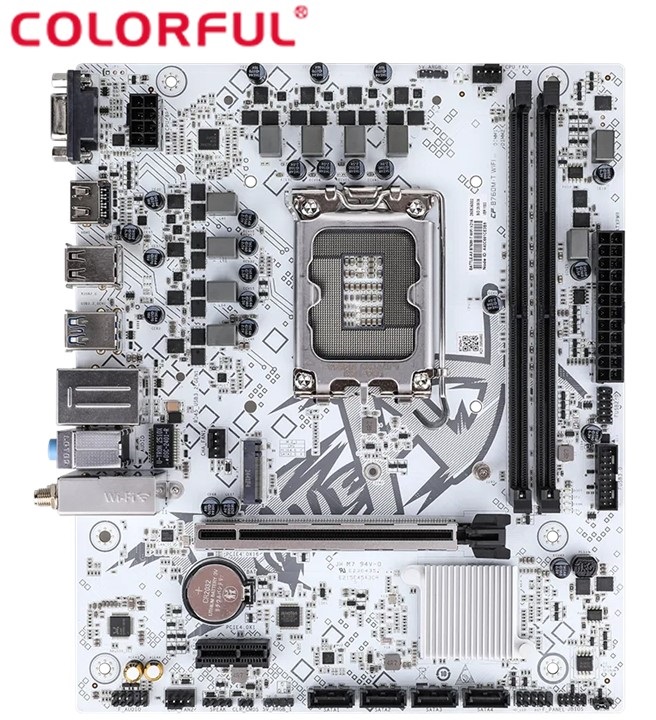

COLORFUL BATTLE AX B760M T WIFI V21A AMD Gaming Motherboard
LGA 1700 socket, Intel B760 chipset—supports Intel 12th/13th/14th Gen CPUs
Memory: 2 × DDR4 DIMM slots, up to 64 GB, supports DDR4-4400 (OC)/4266/4000/3733/3600/3466/3200/3000/2933/2800/2666/2400/2133 MHz
Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x1
Storage: 1 × M.2 (PCIe 4.0 x4) + 4 × SATA 6 Gb/s ports
Networking: WiFi 6E + Bluetooth 5.2 + Gigabit LAN
Rear I/O includes HDMI + VGA, multiple USB ports, ARGB headers, and fan headers
Form factor: Micro-ATX (225 mm × 190 mm)
TECH SPECS:
Chipset Intel® B760
CPU Supports 14th Gen、13th Gen and 12th Gen Intel Core™, Pentium® and Celeron®
processors that fit the LGA 1700 slot of the motherboard
processor list
Memory 2 DDR4 memory slots, supporting up to 64 GB of memory (a single slot can
support a capacity of up to 32 GB)
●Support DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/
3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
●Support Intel® Extreme Memory Profile (XMP) memory technology
●Support dual channel memory technology
compatibility list
Expansion slots 1×PCIe 4.0 x16 slot
1×PCIe 3.0 x1 slot
Storage device
interfaces A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported
●M.2_1 slot：support 2242/2280 specifications M.2 SSD
（PCIe 4.0 x4，PCH channel）
Rear I/O interfaces 2×USB 2.0 interfaces
4×USB 3.2 Gen 1 Type-A interfaces
1×HDMI 2.0 interface, up to 4K 60Hz resolution supported
1×VGA interface
1×PS/2 interface
1×Gigabit network interface
2×Wi-Fi 6 antenna interfaces
3×Audio interfaces (audio input/audio output/microphone)
Onboard
pin/jumper/key 1×CPU fan pin (CPU_FAN)
2×System fan pins (CHA_FAN1、CHA_FAN2)
1×Water cooling pump pin (AIO_PUMP)
2×5V 3-pin ARGB pins (5V_ARGB_1、5V_ARGB_2)
1×Front audio pin (F_AUDIO)
1×Front panel pin (F_PANEL)
1×Speaker pin (SPEAK)
1×COM port pin (COM)
1×ME write protection jumper (JME)
1×Clear CMOS jumper (CLR_CMOS)
1×BIOS burner pin (JBIOS)
1×POST card pin (ESPI_HEADER)
1×PS/2 Wake-up control jumper (JPS2)
Front
USB expansion
interfaces 1×USB 2.0 pin, support additional 2 USB 2.0 Type-A interfaces (FUSB2.0)
1×USB 3.2 Gen 1 pin, support additional 2 USB 3.2 Gen 1 Type-A interfaces
(FUSB3.0)
Audio Realtek ALC897 High fidelity decoding chip
●Support up to 5.1 channels
Network function RTL8111H Gigabit LAN controller
Wireless network
card and Bluetooth Wi-Fi 6 module
●Wi-Fi 6 (support 802.11 a/b/g/n/ac/ax, support 2.4GHz/5GHz wireless
frequency band)
●Bluetooth 5.2
Dimension of
motherboard M-ATX Form Factor
235mm x 196mm
