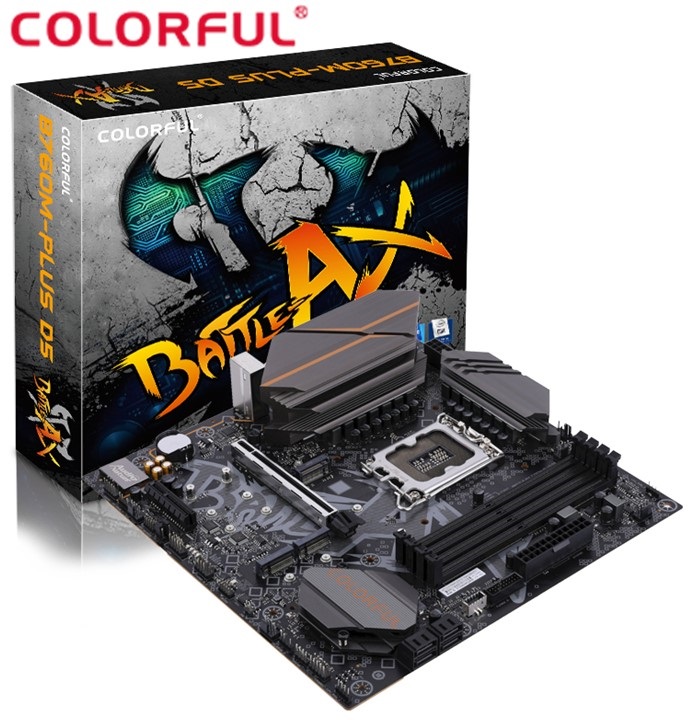

COLORFUL BATTLE-AX B760M-PLUS D5 V20 Intel Gaming Motherboard
BATTLE-AX series customized heat dissipation armor
12+1+1 phase reinforced power supply
Provide 3 PCIe 4.0 x4 M.2 SSD slots
Provide one USB 3.2 Gen 2 Type-C and one USB 3.2 Gen 1 Type-A high-speed rear interface
Equipped with Realtek 2.5G high-speed wired network card
Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
Equipped with CNVI WiFi/BT slot, supporting extended WiFi module
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
TECH SPECS:
Model BATTLE-AX B760M-PLUS D5 V20
Product Series BATTLE-AX series
Chipset Intel B760
Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
Memory Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Intel is supported ® Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
SATA Ports A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
- M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
Board I/O Rear I/O interface:
- 4 USB 2.0 interfaces
- 2 USB 3.2 Gen 1 Type-A interfaces
- 1 USB 3.2 Gen 2 Type-C interface
- 1 DP 1.2 interface, supporting up to 4K 60Hz resolution
- 1 HDMI 2.0 interface, Up to 4K 60Hz resolution
- 1 2.5G network interface
- 3 audio interfaces (audio input/audio output/microphone)
Onboard device interface:
- 1 CPU fan pin
- 3 system fan pins
- 1 water-cooled pump pin
- 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
- 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
- 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
- 2 5V 3-pin ARGB pins
- 2 12V 4-pin RGB pins
- 1 Front audio pin
- 1 Front panel pin
- 1 speaker pin
- 1 clear CMOS jumper
- 1 serial port pin
- 1 BIOS burner pin
- 1 diagnostic card pin
- 1 ME write protection jumper
- 1 RGB lamp efficiency control jumper
Expansion Slots 1 PCIe 5.0 x16 slot
1 PCIe 3.0 x4 slot
BIOS 128M UEFI, supporting multiple languages
Power Management Support S3, S4, network S5 wake-up, regular power on and power on
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125 2.5Gbit network card
Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration M-ATX
245mm x 245mm
