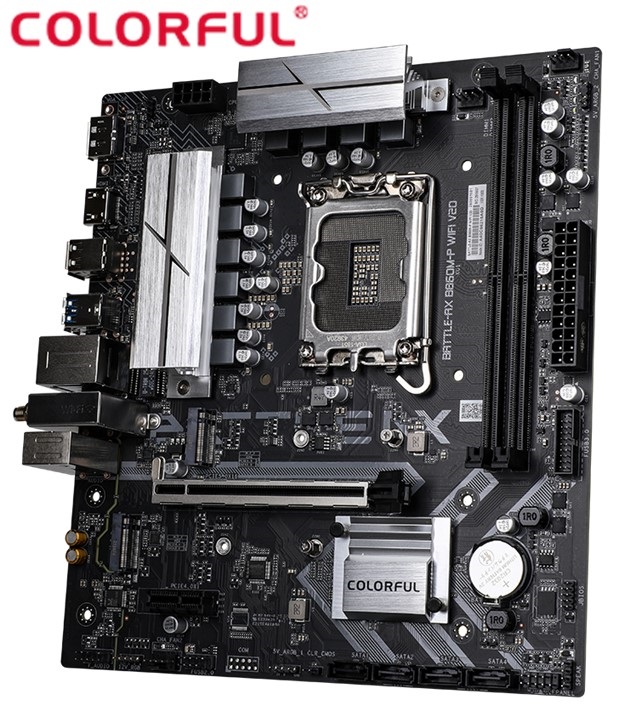

COLORFUL BATTLE-AX B860M-P WIFI V20 Intel Gaming Motherboard
-
Custom Frost Cooling Armor for the Battle Axe Series
-
7+1+1+1 phase enhanced power supply
-
It provides one PCIe 5.0 x4 M.2 SSD slot and one PCIe 4.0 x4 M.2 SSD slot.
-
Provides HDMI+DP display interfaces
-
It features a gigabit wired network card and an AX101 WiFi 6 wireless network card, and supports Bluetooth 5.2.
-
Supports iGame Center lighting control software, allowing simultaneous adjustment of lighting effects for the heatsink, cooling fans, and memory.
TECH SPECS:
Product Model BATTLE-AX B860M-P WIFI V20
Product Series Battle Axe series
Chipset Intel B860
CPU support Supports Intel® Core™ Ultra processors compatible with LGA 1851 socket motherboards
Memory support Provides 2 DDR5 memory slots, supporting up to 96 GB of memory (up to 48 GB per slot)
- Supports DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory
- Supports Intel® Extreme Memory Profile (XMP) memory technology
- Supports dual-channel memory technology
Storage interface It supports a total of 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, and supports the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices.
- M.2_1 slot: Supports 2242/2280 form factor M.2 SSDs (PCIe 5.0 x4, CPU lane)
- M.2_2 slot: Supports 2242/2280 form factor M.2 SSDs (PCIe 4.0 x4, PCH lane)
(*For detailed steps on creating RAID disk arrays, please refer to Colorful's official BIOS user guide.)
Extension Interface Rear I/O Ports:
- 2 USB 2.0 ports
- 4 USB 3.2 Gen 1 5Gbps Type-A ports
- 1 DP 1.4 port, supporting up to 8K 60Hz resolution
- 1 HDMI 2.0 port, supporting up to 4K 60Hz resolution
- 1 Gigabit Ethernet port
- 2 Wi-Fi 6-antenna ports
- 3 audio ports (audio input/audio output/microphone)
Onboard Device Ports:
- 1 USB 2.0 header (expandable to 2 USB 2.0 Type-A ports)
- 1 USB 3.2 Gen 1 header (expandable to 2 USB 3.2 Gen 1 5Gbps Type-A ports) -
1 CPU fan header -
2 system fan headers -
2 5V 3-pin ARGB headers -
1 12V 4-pin RGB header
- 1 front audio header
- 1 front panel header -
1 speaker header -
1 BIOS programmer header
- 1 CMOS clear jumper
Expansion slots One PCIe 5.0 x16 slot and
one PCIe 4.0 x1 slot
System BIOS 256M UEFI, supports multiple languages
Power Management Supports S3, S4, and S5 wake-up from the network; supports scheduled power-on and power-on upon incoming call.
Hardware monitoring Controllable CPU fan speed, controllable system fan speed, CPU temperature monitoring, system temperature monitoring, and voltage monitoring for each group.
Onboard network card RTL8111H Gigabit Ethernet adapter, AX101 WiFi 6 wireless network adapter, Bluetooth 5.2
Onboard sound card The Realtek ALC897 high-fidelity decoding chip supports 5.1 channels.
Motherboard Specifications M-ATX form factor
230mm x 210mm
