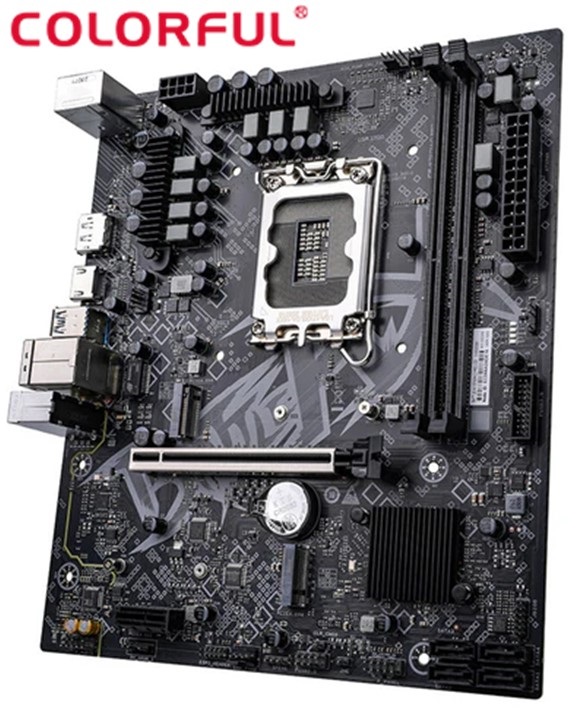

COLORFUL BATTLE-AX B760M-F V20A AMD Gaming Motherboard
The Colorful BATTLE-AX B760M-F PRO V20A is a feature-rich motherboard built for modern Intel systems. With DDR5 memory support, M.2 storage compatibility, and reliable performance, it provides a solid foundation for gaming and productivity PCs.
Model BATTLE-AX B760M-D PRO V20
Product Series BATTLE-AX series
Chipset Intel B760
Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Memory 2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)
- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory
- support Intel εΊ Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)
Board I/O Rear I/O interface:
- 1 PS/2 interface
- 2 USB 2.0 interfaces
- 4 USB 3.2 Gen 1 Type-A interfaces
- 1 DP 1.2 interface, supporting up to 4K 60Hz resolution
- 1 HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- 1 2.5G network interface
- 3 audio interfaces (audio input/audio output/microphone)
Onboard device interface:
- 1 CPU fan pin
- 2 system fan pins
- 1 water cooling pump pin
- 1 USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
- 1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
- 2 5V 3-pin ARGB pins
- 1 front audio pin
- 1 front panel pin
- 1 speaker pin
- 1 ME write protection jumper
- 1 clear CMOS jumper
- 1 BIOS burner pin
- 1 POST card pin
- 1 PS/2 call Wake up control jumper
Expansion Slots 1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot
BIOS 128M UEFI, supporting multiple languages
Power Management Support S3, S4, network S5 wake-up, regular power on and power on
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125 2.5G network card
Audio 5.1 Channel sound card
Configuration M-ATX
240mm x 207mm
