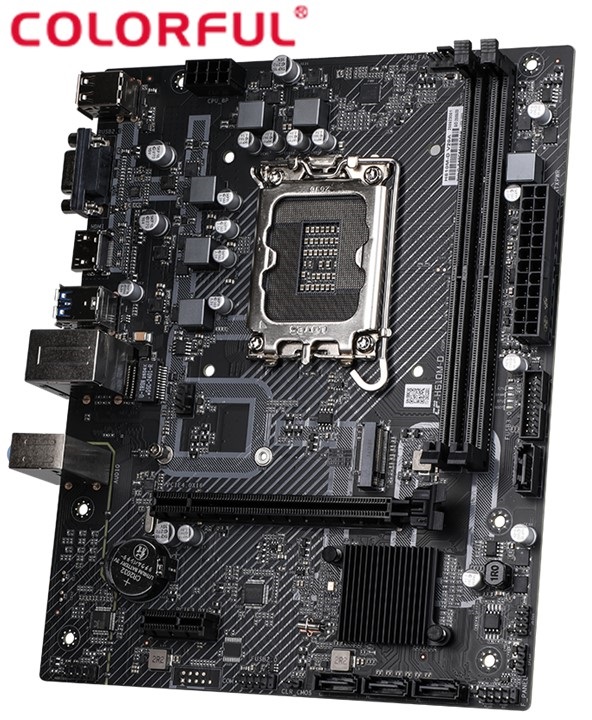

COLORFUL H610M-D V20A AMD Gaming Motherboard
Intel H610 chipset
Supports dual-channel DDR4-3200MHz memory
Provides 1 PCIe 3.0 x4 M.2 SSD slot
Equipped with HDMI+VGA display interface
Equipped with Realtek 8111H Gigabit wired network card
Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
Front: Expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
TECH SPECS:
Model H610M-D V20A
Product Series Colorful series
Chipset Intel H610
Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
Memory 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)
- Supports DDR4-3200/2933/2666/2400/2133MHz memory
- Supports dual-channel memory technology
SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces
-M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×Gigabit network interface
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-1×System fan pin
-1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×BIOS burner pin
Expansion Slots 1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3, S4, network S5 wake-up, support scheduled startup, call startup
Hardware Monitor CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring
LAN RTL8111H Gigabit network card
Audio Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels
Configuration M-ATX
225mm x 180mm
