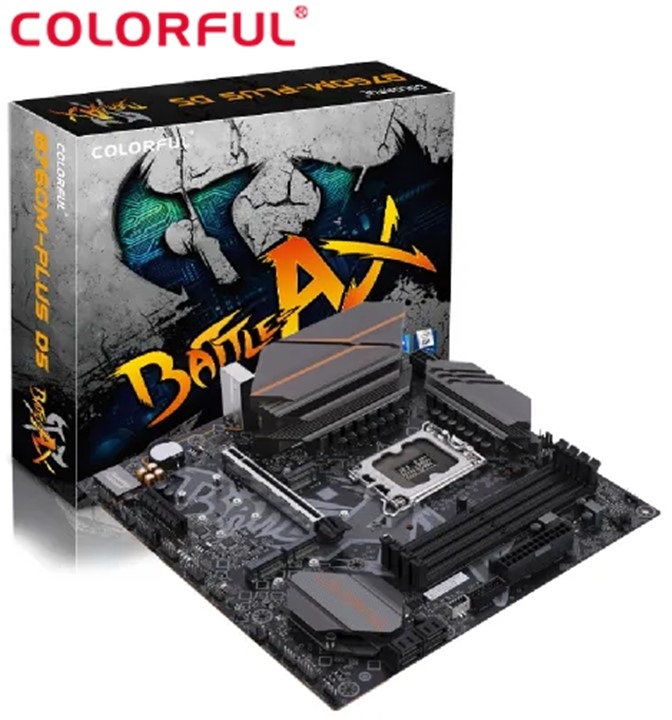

COLORFUL BATTLE-AX B760M-PLUS WIFI V20 AMD Gaming Motherboard
roduct Model BATTLE-AX B760M-PLUS WIFI V20
Product Series Battle Axe series
Chipset Intel B760
CPU support Supports 14th, 13th, and 12th generation Intel® Core™, Pentium®, and Celeron® processors compatible with LGA 1700 socket motherboards
Memory support Provides 4 DDR4 memory slots, supporting up to 128 GB of memory (maximum 32 GB per slot)
- Supports DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
- Supports Intel® Extreme Memory Profile (XMP) memory technology
- Supports dual-channel memory technology
Storage interface It supports a total of 3 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, and supports the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices.
- M.2_1 slot: Supports 2242/2260/2280 form factor M.2 SSDs (PCIe 4.0 x4, CPU lane)
- M.2_2 slot: Supports 2242/2260/2280 form factor M.2 SSDs (PCIe 4.0 x4, PCH lane)
- M.2_3 slot: Supports 2242/2260/2280 form factor M.2 SSDs (PCIe 4.0 x4, PCH lane)
(*For detailed steps on creating RAID disk arrays, please refer to Colorful's official BIOS user guide.)
Extension Interface Rear I/O Ports:
- 4 USB 2.0 ports
- 2 USB 3.2 Gen 1 Type-A ports
- 1 USB 3.2 Gen 2 Type-C port
- 1 DP 1.2 port, supporting up to 4K 60Hz resolution
- 1 HDMI 2.0 port, supporting up to 4K 60Hz resolution -
1 2.5G network port
- 2 Wi-Fi 6 antenna ports
- 3 audio ports (audio input/audio output/microphone)
Onboard Device Ports:
- 1 CPU fan header
- 3 system fan headers
- 1 water pump header - 1
USB 2.0 header (expandable to 2 USB 2.0 Type-A ports)
- 1 USB 3.2 Gen 1 header (expandable to 2 USB 3.2 Gen 1 Type-A ports) -
1 USB 3.2 Gen 1 Type-C slot (expandable to 1 USB 3.2 Gen 1 Type-C port) -
2 5V 3-pin ARGB headers
- 2 12V 4-pin RGB header
- 1 front audio header
- 1 front panel header -
1 speaker header -
1 CMOS clear jumper
- 1 serial port header
- 1 BIOS programmer header
- 1 diagnostic card header
- 1 ME write-protect jumper
- 1 RGB lighting control jumper
Expansion slots One PCIe 5.0 x16 slot and
one PCIe 3.0 x4 slot
System BIOS 128M UEFI, supports multiple languages
Power Management Supports S3, S4, and S5 wake-up from the network; supports scheduled power-on and power-on upon incoming call.
Hardware monitoring CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, System temperature monitoring, and voltage monitoring for each group.
Onboard network card RTL8125BG 2.5Gbit Ethernet adapter, AX101 WiFi 6 wireless network adapter, Bluetooth 5.2
Onboard sound card The ALC897 sound card chip supports 5.1 channel audio.
Motherboard Specifications M-ATX form factor
245mm x 245mm
