GPU

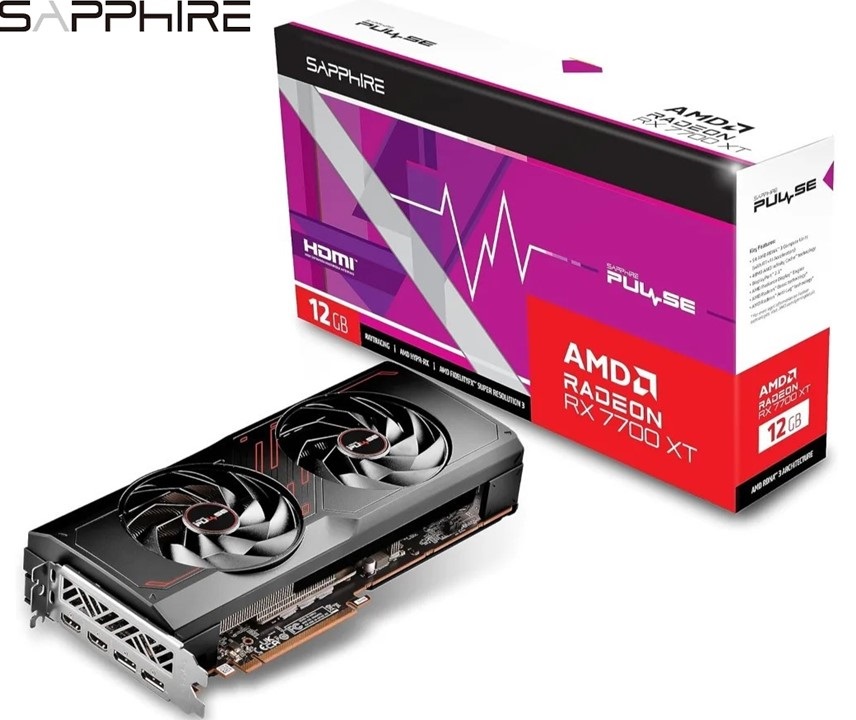

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2544 MHz
Game Clock: Up to 2171 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
3456
Compute Units
54 CU (with RT+AI Accelerators)
Infinity Cache
48MB
Ray Accelerators
54
Memory Size/Bus
12GB/192 bit GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
2x HDMI
2x DisplayPort
BIOS Support
UEFI
Game Index
1440P
Sapphire Features
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 3 Architecture
54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
48MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1Support
AMD Radiance Display™ Engine
12GB GDDR6 on 192-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ technology
Cooler Type
2 Fans
Form Factor
2.5 slot, ATX
Dimension: 280(L)X 128.75(W)X 52.57 (H)mm
Power Consumption
230W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
