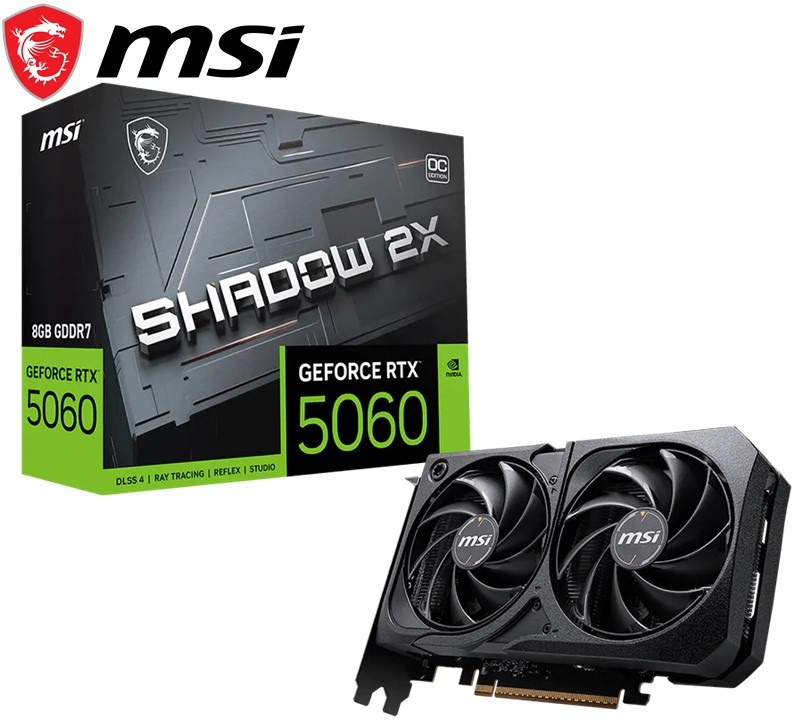

MSI GeForce RTX 5060 8G SHADOW 2X OC Gaming Graphics Card
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks:
Extreme Performance: 2535 MHz (MSI Center)
Boost: 2527 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
TECH SPECS:
MARKETING NAME
GeForce RTX™ 5060 8G SHADOW 2X OC
MODEL NAME
G5050-8S2C
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 5050
INTERFACE
PCI Express® Gen 5 x16 (uses x8)
CORE CLOCKS
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2527 MHz
CUDA® CORES
3840 Units
MEMORY SPEED
20 Gbps
MEMORY
8GB GDDR6
MEMORY BUS
128-bit
OUTPUT
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP SUPPORT
Y
POWER CONSUMPTION
145 W
POWER CONNECTORS
8-pin x1
RECOMMENDED PSU
550 W
CARD DIMENSION (MM)
197 x 120 x 40 mm
WEIGHT (CARD / PACKAGE)
493 g / 814 g
DIRECTX VERSION SUPPORT
12 Ultimate
OPENGL VERSION SUPPORT
4.6
MAXIMUM DISPLAYS
4
G-SYNC® TECHNOLOGY
Y
DIGITAL MAXIMUM RESOLUTION
7680 X 4320
