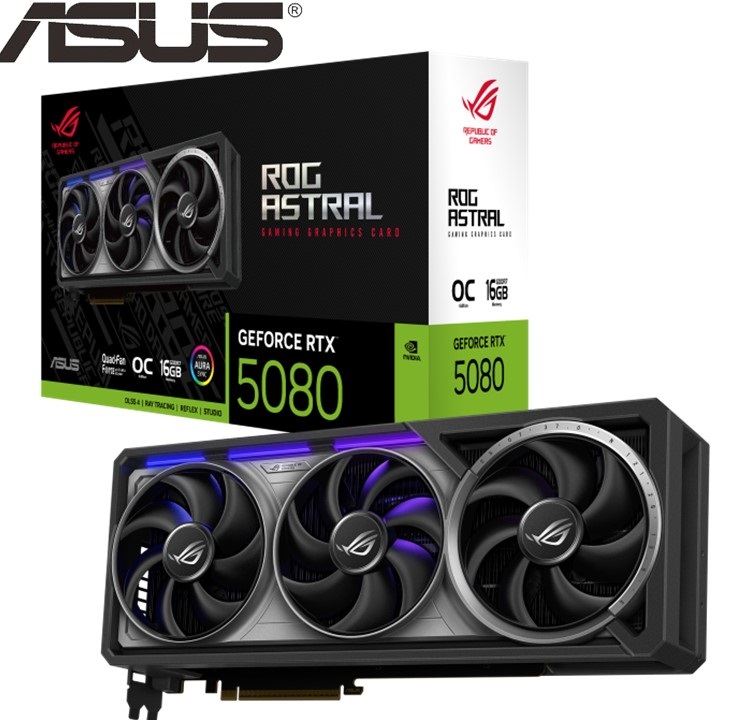

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
TECH SPECS:
GRAPHIC ENGINE
NVIDIA® GeForce RTX™ 5080
AI PERFORMANCE
1801 TOPs
BUS STANDARD
PCI Express 5.0
OPENGL
OpenGL®4.6
VIDEO MEMORY
16GB GDDR7
ENGINE CLOCK
OC mode: 2790 MHz
Default mode: 2760 MHz (Boost Clock)
CUDA CORE
10752
MEMORY SPEED
30 Gbps
MEMORY INTERFACE
256-bit
RESOLUTION
Digital Max Resolution 7680 x 4320
INTERFACE
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
MAXIMUM DISPLAY SUPPORT
4
NVLINK/ CROSSFIRE SUPPORT
No
ACCESSORIES
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 3)​
SOFTWARE
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
DIMENSIONS
357.6 x 149.3 x 76 mm
14.1 x 5.9 x 3 inch
RECOMMENDED PSU
850W
POWER CONNECTORS
1 x 16-pin
SLOT
3.8 Slot
AURA SYNC
ARGB
