NVIDIA® Blackwell GPU
10752 CUDA Cores
16GB GDDR7 Memory
256-bit Memory Interface
30 Gbps Memory Speed
Base clock: 2.3 GHz
Boost clock: 2.62 GHz
4th Generation Ray Tracing Cores
5th Generation Tensor Cores
NVIDIA DLSS 4
16-Pin Supplementary Power Connector
7 Heat Pipes and Vapor Chamber Base
Metal Backplate
TECH SPECS:
Specifications
Graphics Processing Unit (GPU) NVIDIA GeForce® RTX 5080
Bus Interface PCI Express 5.0
Memory Configuration 16G GDDR7
Core Clock Base clock: 2.3 GHz
Boost clock: 2.62 GHz
Memory Speed 30 Gbps
Output Ports 1x HDMI(2.1), 3 x DisplayPort(2.1)
Maximum Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
Memory Interface Width 256-bit
Memory Bandwidth (GB/sec) 960
CUDA Cores 10752
HDCP Support Yes
Microsoft® DirectX® Microsoft DirectX® 12 Ultimate
NVIDIA RTX NVLink No
OpenGL® 4.6
Maximum Power Draw(W) 360 W

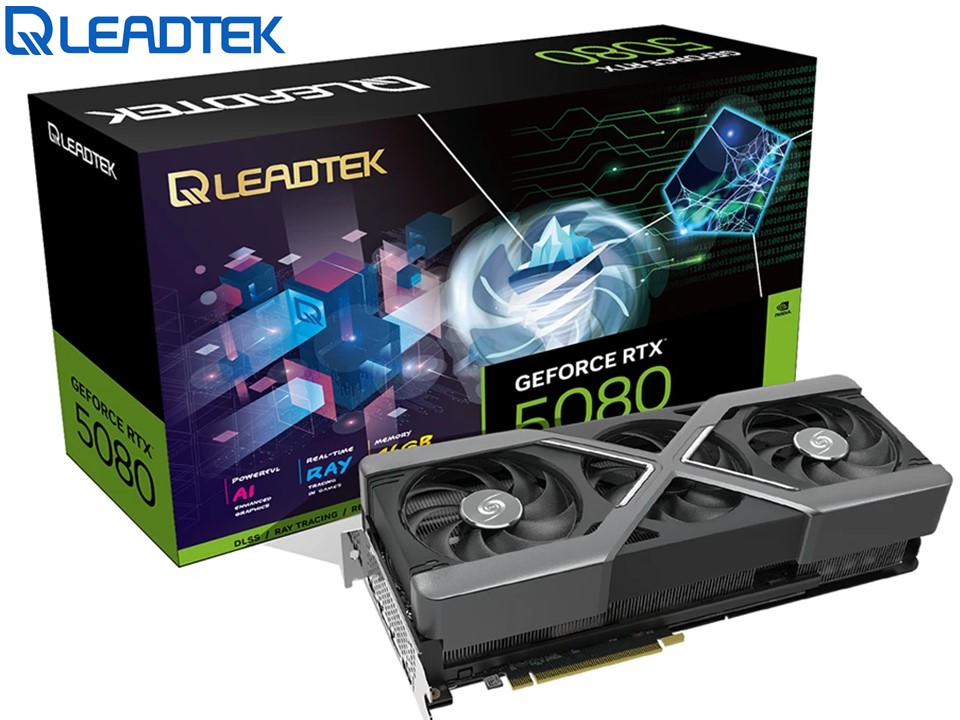

Package Contents WinFast RTX 5080 HURRICANE Graphics Card
Quick Installation Guide
16 Pin Power Cable x 1(3 x PCI/E 8pin to 16Pin)
GPU Support Holder
Requirements Microsoft Windows10,Windows 11 and Linux operation system (64 bit)
PCI-Express compliant motherboard with one four-width x16 graphics slot
Three 8-pin PCI-Express supplementary power connectors
8GB system memory (16GB or higher recommended)
1.5GB of available hard disk space
A DP or HDMI compatible monitor
Minimum 850W Power Supply
