GPU: Boost Clock: Up to 3060 MHz
-
GPU: Game Clock: Up to 2520 MHz
-
Memory: 16GB/256 bit DDR6. 20 Gbps Effective
-
Stream Processors: 4096
-
AMD RDNA™ 4 Architecture
-
Ray Accelerator: 64
TECH SPECS:
GPU

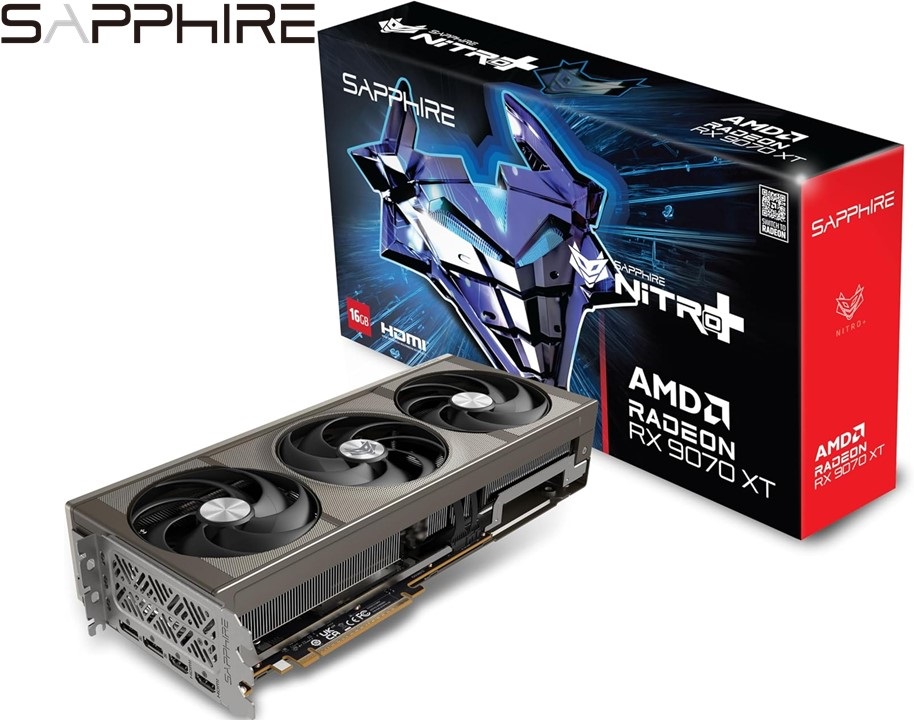

AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture
Engine Clock
Boost Clock: Up to 3060 MHz
Game Clock: Up to 2520MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4096
Compute Units
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
64
AI Accelerator
128
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
2x HDMI®
2x DisplayPort™ 2.1a
BIOS Support
UEFI
Game Index
4K
Sapphire Features
Quick Connect MagniPlate
STEALTH Hidden Power Cable
12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Cold Rolled Steel Frame
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB Light Bar
Fan Quick Connect
Two-Ball Bearing Fans
Premium 16-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
Fan Check
TriXX Boost
External RGB LED MB Synchronization
Accessories Bundled
L-Shape Support Bracket
3pin 5V ARGB Cable
Magnetic Backplate
12V-2x6(H++) to PCI Express 3x8-pin power adapter
AMD Features
AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application
Cooler Type
Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing
Form Factor
3.2 slot, ATX
Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm
Power Consumption
330W Typical Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 750 Watt Power Supply
12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
