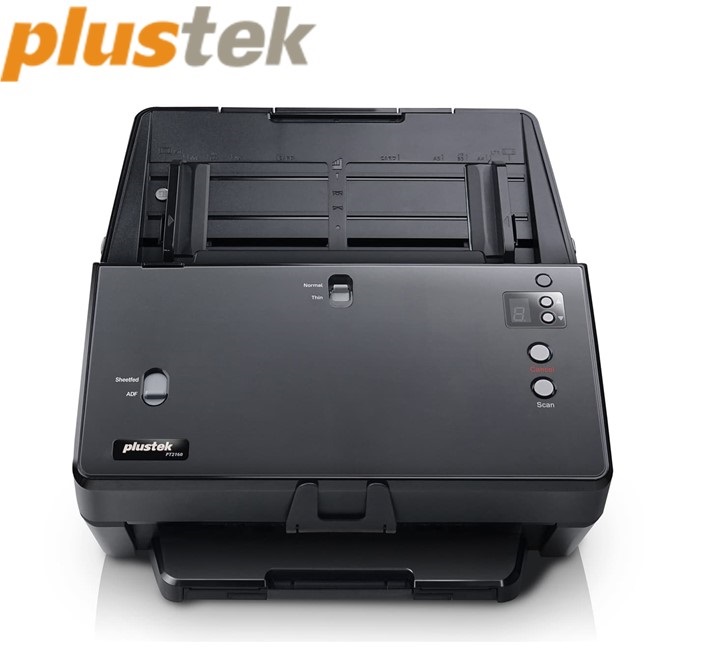

Image Sensor CIS x 2 (Duplex Scanner)
Light Source LED
Optical Resolution 600 dpi
Interpolated Resolution 1200 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards, landscape feeding)
3. Plastic Card, Max. thickness under 1.2 mm landscape feeding
4. Passport: Less 4.0 mm (0.15 in.) thickness (including carrier sheet)
Note: To prevent passport damage, please scan with carrier sheet when scanning a passport. Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
60 ppm/ 120 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
60 ppm/ 120 ipm (Color mode, 200 dpi, A4 Portrait)
60 ppm/ 120 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Actual scanning speeds are affected by data transmission, software processing times with USB 3.0 connection and finally by the specification of the pc.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L) Max: 244 x 5080 mm (9.65” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 27 to 413 g/㎡ (7.2 to 110 Lbs)
Multi-feed Detection With ultrasonic technology
Daily Duty Scan ( Sheets ) 8,000
Separate Roller Lifetime (Scans) 300,000
Pick Roller Lifetime (Scans) 300,000
Friction Roller Lifetime (Scans) 100,000
Action Button 5 Buttons: Power, Up, Down, Cancel, Scan
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A
Interface USB 3.2 Gen 1x1, USB 3.2 Gen 1x1 (Host) x1
Net Weight 4.1 Kgs | 9.04 Lbs
Dimensions (W x D x H) 319.9 x 298.2 x 236.6 mm | 12.59" x 11.74" x 9.32"
Protocol TWAIN Compliant
Operating System Windows 7 / 8 / 10 / 11
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements 3.2 GHz CPU processor or higher[1]
[1]Windows Recommended: 3.2 GHz Intel® Core™ i7 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
Bundled Software Plustek DocAction
Plustek DocTWAIN
Built-in OCR Plustek OCR
(Powered by ABBYY® FineReader®)
