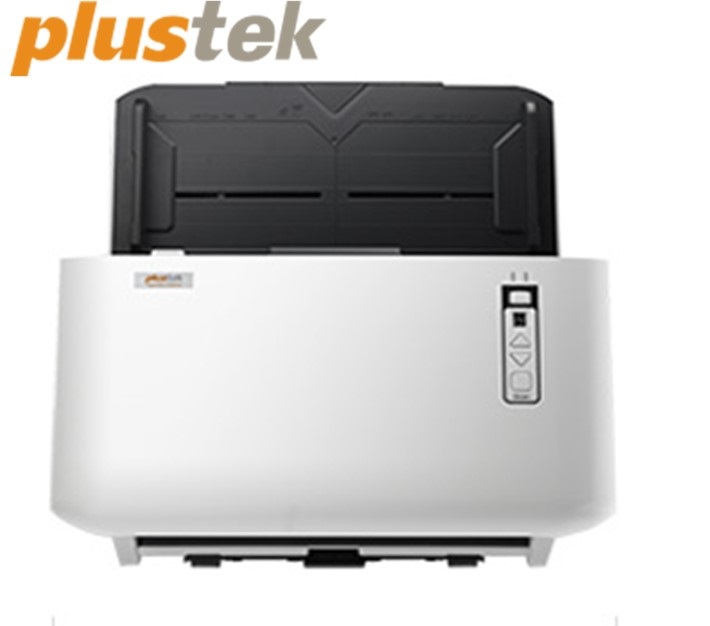

PlusTek SmartOffice SN8016U A3 High Speed Document Scanner
Performance - Fast, A3 size availble, high daily duty cycle
Featuring a scan speed of 80 pages per minute, 160 images per minute in duplex mode,a 100 sheet feeder and a daily duty cycle of 8,000 pages per day, the SmartOffice SC8016U is designed for applications requiring frequent scanning of large document batches.
TECH SPECS:
Image Sensor CIS x 2
Light Source LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 10 mm (0.4”)
2. 50 sheets (A3, 70 g/㎡ or 18 Lbs)
3. 20 sheets (Business Cards)
4. Plastic Card (Portrait Loading), Max. thickness under 1.2 mm, embossed cards can be scanned.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4 Landscape)
55 ppm/ 110 ipm (Color mode, 200 dpi, A4 Landscape)
36 ppm/ 72 ipm (Color mode, 300 dpi, A4 Landscape)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 297 x 5080 mm
Min: 13.2 x 13.2 mm
|
[us] Max: 11.69” x 200”
Min: 0.52” x 0.52”
Acceptable Paper Sizes (W x L) Max: 305 x 5080 mm
Min: 50.8 x 63.5 mm
|
[us] Max: 12” x 200”
Min: 2” x 2.5”
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)
Multi-feed Detection With ultrasonic technology
Daily Duty Scan ( Sheets ) 8,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys: all customizable.
Power Supply 24 Vdc/ 2.7 A
Interface USB 2.0 Type B / RJ45 LAN
Net Weight 6.57 kg | [us] 14.48 lbs
Dimensions (W x D x H) 436 x 262 x 266 mm | [us] 17.16" x 10.31" x 10.47"
Protocol TWAIN Compliant
Operating System Windows XP / Vista / 7 / 8 / 10 / 11
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements 3.2 GHz CPU processor or higher[1]
[1]Windows Recommended: 3.2 GHz Intel® Core™ i7 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
Bundled Software Plustek DocAction
Plustek DocTWAIN
Built-in OCR Plustek OCR
(Powered by ABBYY® FineReader®)
