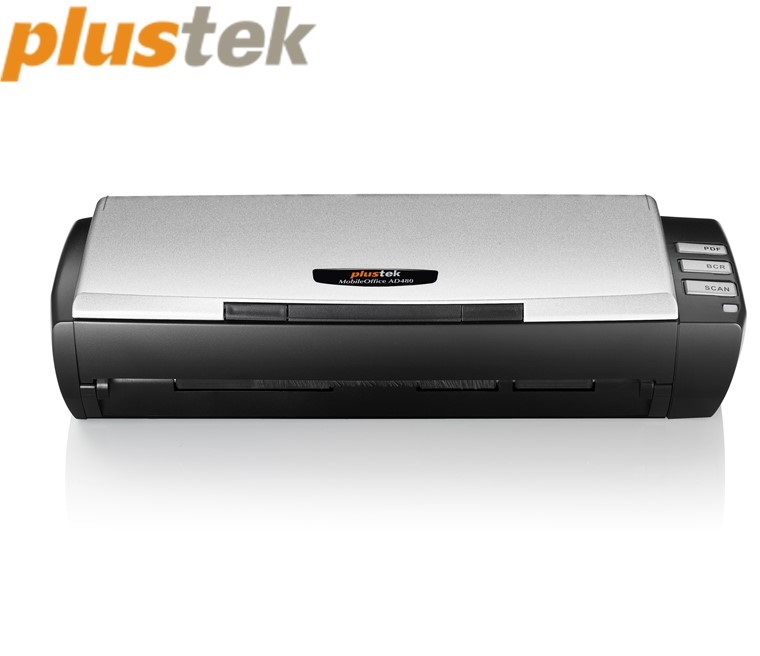

Two-Sided Multi-Page Scanning : Plustek AD480 scans both sides of each page at up to 20 pages per minute directly to PDF, searchable PDF, JPEG
One touch button for SCAN / BCR / PDF , easy and fast scan and assort file
Generate editable Microsoft Word, Excel, and PowerPoint files
powerful features : Auto Threshold / Auto Rotate / Auto Crop & Deskew / Blank Page Removal and Color Dropout
TECH SPECS:
Image Sensor CIS x 2 (Duplex)
Light Source LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
ADF Capacity 20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
6 Sheets (Business Card)
Scanning Speed 20 ppm / 40 ipm (Grayscale, 200 dpi, A4)
20 ppm / 40 ipm (B&W, 200 dpi, A4)
20 ppm / 40 ipm (Color, 200 dpi, A4)
Scanning Area (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Cardslot:
Maximum: 54.6 x 101.6 mm (2.15" x 4")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Acceptable Paper Sizes (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 50.8 x 50.8 mm (2" x 2")
Cardslot:
Maximum: 54.6 x 101.6 mm (2.15" x 4")
Minimum: 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness) Paper: 50 g/㎡ to 120 g/㎡
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ) 1500
Roller Lifetime (Scans) 100000
Pad Lifetime (Scans) 20000
Action Button PDF, BCR, Scan
Power Supply AC adapter: 24 Vdc/ 0.75 A
Interface USB 2.0
Net Weight 1.3 Kgs | 2.87 Lbs
Dimensions (W x D x H) 288.5 x 98 x 75 mm | 11.36" x 3.8" x 2.96"
Protocol TWAIN compliant
Operating System Window XP / Vista / 7 / 8 / 10 / 11
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements 2.0 GHz CPU processor or higher[1]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
Bundled Software Plustek DocAction
Plustek DocTWAIN
Presto! BizCard 8
Built-in OCR Plustek OCR
(Powered by ABBYY® FineReader®)
