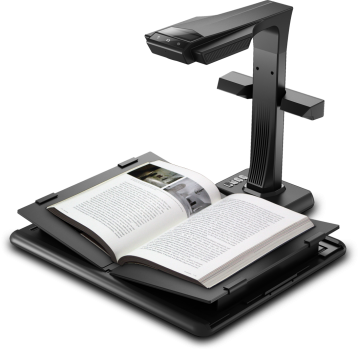

M3000 Pro
Library:
M3000 Pro will help read enthusiasts, librarians quickly and easily scan books, magazines and
documents, helping with the construction of Digital Library.
Archives:
Being able to scan up to A3 format, M3000 Pro can quickly digitalize a wide range of archival
materials, even in different shapes, and the non-destructive scanning method effectively
avoids damage to your valuable files, automatically converting them into digital documents.
Medical Institution:
A large number of valuable cases, medical information can be quickly scanned through the M3000 Pro
into electronic documents, building an e-medical-database for easy access and reference.
Specifications:
Characteristics:
Model: M3000 Pro
Scanning materials: Documents, Books, Magazines, Files, Scrolls, Forms,
Invoices, Certificates, Business cards and Sculpture object
Sensor: CMOS
Pixel: 20M
Resolution: 5248*3936
DPI (default): 300
Format: Flat single page≤A3; Books≤A4
Speed: Flat single page≈1.2s/page;Books≈1.2s/dual pages
Pre scan: 0s
Image format: JPG
Color bit depth: 24 bits
Export format: JPG, PDF, Searchable PDF, Word, Excel, TIFF
Video streaming format: MJPG
Preview: PC-Visual presenter: 1920*1080@20Fps; PC-Scanning:1536*1152@20Fps
USB: USB 2.0 High-Speed

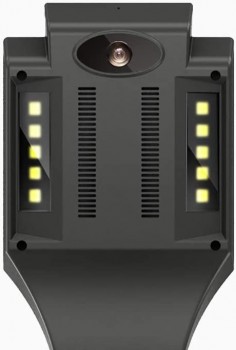

Light source: Natural light and LED lights
Top LED lights: √
Side lights: √
Focus mode: Fixed focus
Scanning access: Device Control, Software triggering, Hand button, Foot pedal
System support: XP, Win 7/ 8/10, 32/64-bit; macOS 10.11 and above; macOS Monterey 12 is not supported
Configurations:
Processor: 32-bit MIPS CPU
Laser – assisted: 3 laser rays
DDR: 1G bit
Image cache: Hi-Speed DDR
LCD: 2.4", 4:3, 320x240
MIC: √
Buzzer: √
Hand button: √
Foot pedal: √
Hard document base: √
Book rest: √
Book cover block: √

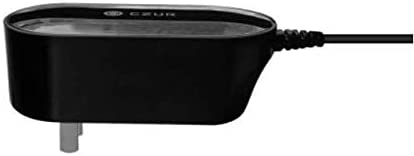

Powe:r Input:AC 100-240V-50/60HZ 0.6A Output:DC 9V⎓1.5A-2A
Specific functions:
OCR: √
OCR languages: 180+
Visual presenter: USB-PC Visual presenter
Software features:
Flattening Curve: √
Smart paging: √
Smart tilt corrections and auto-cropping: √
Professional trimming: √
Background purifying: √
Finger removal: √
Color mode: Color, Patterns, Stamps, Gray scale, B&W
Optical features:
Element: 2G2P+IR
Sensor Size: 1/2.3"
EFL: 4.7mm
BFL: >6.18mm
F/NO: 3.5
IR Cut: 650±10nm
Field of view: 82°
Distortion: <0.3%
Packaging and Accessories:
Product appearance: Black
Product dimensions: 505*520*425mm（L*W*H）
Weight: 4.5KG（Net）
Packaging list: Scanner, Side lights, USB cable, Power adapter, Hand button, Foot pedal, Black document pad, Specialized finger cots, CD, User manual.
