TECH SPECS:

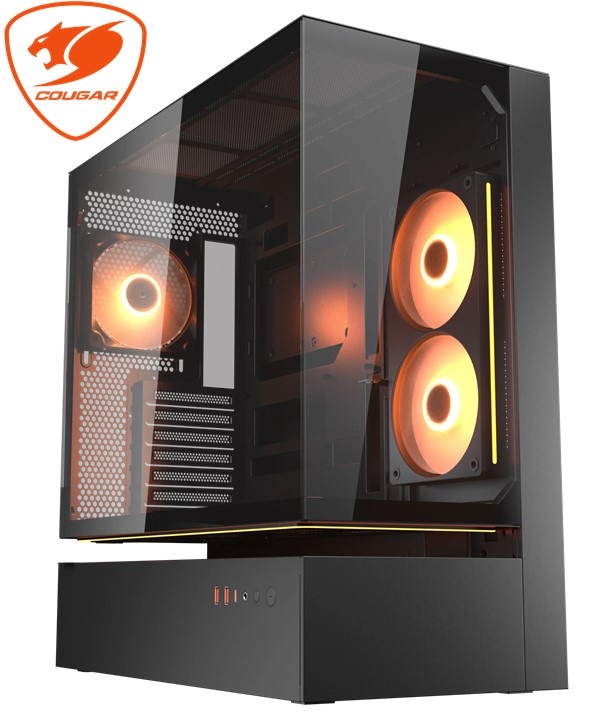

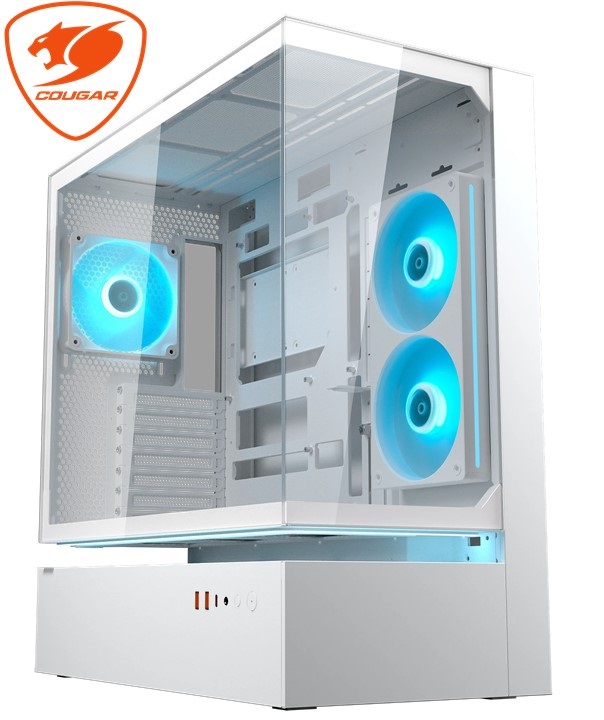

Product Name CFV235 / CFV235 (White)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB
Dimensions (WxHxD) 235 x 493 x 460 (mm)
9.3 x 19.4 x 18.1 (in)
I/O Panel USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 2+2 (converted from 3.5" drive bays)
Expansion Slots 7
Cooling Fan Support Top 120mm x 3 / 140mm x 3
M/B Side 120mm x 2
Bottom 120mm x 3
Rear 120mm x 1
Pre-installed Fans M/B Side Unity 240 ARGB PWM Reversed fan x 1
Rear 120mm ARGB PWM fan x 1
Speed Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10%
120mm ARGB PWM fan: 500-1400 ± 10% RPM
Connector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans 9
Water Cooling Support Top 360mm / 280mm / 240mm / 140mm / 120mm
Rear 120mm
Aurora LED Strip Yes
PWM and RGB hub Sync with M/B Yes
Max. Graphics Card Length 430 (mm) / 16.9 (in)
Max. CPU Cooler Height 175 (mm) / 6.9 (in)
Max. PSU Length 200 (mm) / 7.9 (in)
