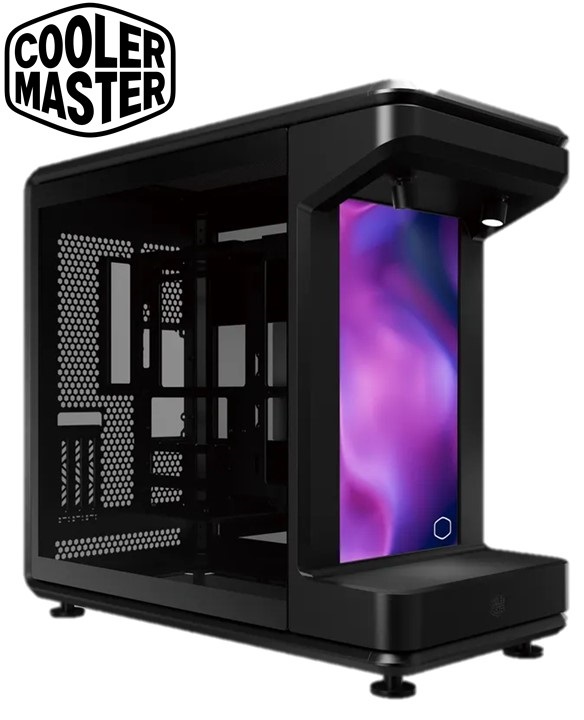

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.​
TECH SPECS:
Product Name
MASTERFRAME 360 PANORAMA
Color(s)
Black
Materials - Exterior
SGCC
Materials - Side panel (Right / Left)
TG / TG​
Dimensions (L x W x H)
549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
Volume
86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
Motherboard Support
Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Power Supply Support
ATX
PCI Expansion Slots
3.5
Drive bay support - 3.5" Drive Bays
0
Drive bay support - 2.5" / 3.5" Drive Bays (or SSD)
1x HDD or 2x SSD
I/O Panel - USB Ports
2x USB 3.2 Gen 1 Type-A 5G​, 1x USB 4.0 Gen 2x2 Type-C 20G
I/O Panel - Audio In / Out
1x 3.5mm Headset Jack (Audio+Mic)
Fan Support - Top
6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Bottom
6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Support - Top
120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Radiator Support - Bottom
120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)​
Dust Filters
Mesh Only (Removable Filters)
Other electronic components
1x PCI-e 5.0 Riser / 2x ARGB spotlight
Maximum Dimensions for Front Collectibles Display (H x W x D)
328 x 290 x 110 mm
DIY tank & Pump support
MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket)
DIY tank & Pump support
MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side)
Toolbox
Yes
Clearances - CPU Cooler
145 mm
Clearances - Power Supply
210 mm
Clearances - Graphics Card
430 mm
Cable Routing - Behind Motherboard Tray
110 mm
Size
Mid Tower
Series
MasterFrame Series
