• Back-connected motherboard support
• Versatile Cooling Options
• FineMesh Performance Front Panel
• Optimized airflow
• Room For Upgrades
• Removable HDD cage
TECH SPECS:
Model Number

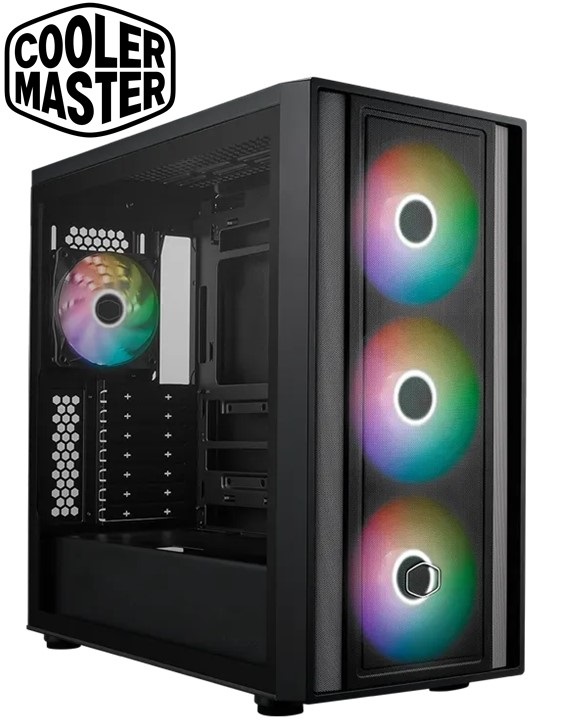

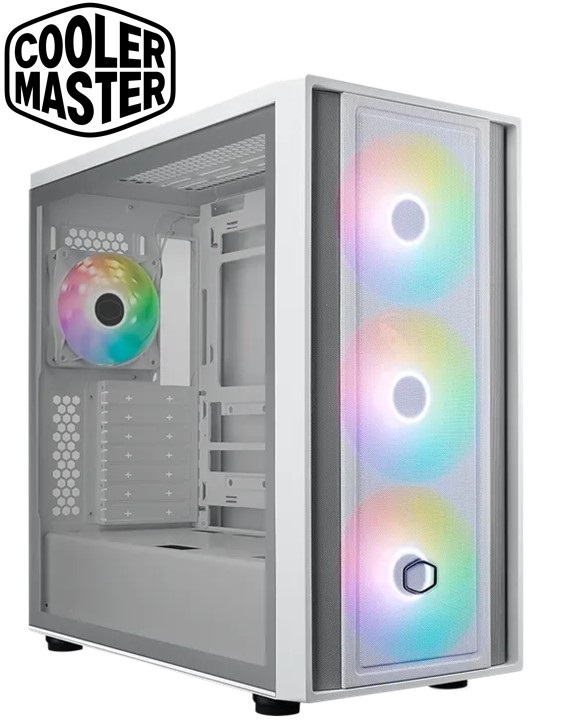

MasterBox 600 Black:MB600-KGNN-S00 MasterBox 600 White:MB600-WGNN-S00
Exterior Color
Black, White
Materials - Exterior
Steel, Plastic
Materials - Side Panel
Tempered Glass
Dimensions (L x W x H)
474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)
Volume
49.73L
Motherboard Support
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots
7
3.5" Drive Bays
2
2.5" Drive Bays
2 (Max.6)
I/O Panel - USB Ports
2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out
1x 3.5mm Combo
Included Accessories
ARGB Fans Hub
Pre-installed Fans - Front
3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm)
Pre-installed Fans - Rear
1x 120mm CF120 ARGB (650~1200 rpm)
Fan Support - Front
3x 120/140mm
Fan Support - Top
3x 120mm / 2x 140mm
Fan Support - Rear
1x 120mm
Radiator Support - Front
120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
Radiator Support - Top
120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear
120mm
Clearance - CPU Cooler
170mm
Clearance - PSU
170mm, 210mm (w/o HDD Cage)
Clearance - GFX
360mm, 410mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray
33-35 mm
Dust Filters
Top, Bottom
Power Supply Support
ATX
Size
Mid Tower
Series
MasterBox Series
Back Connector Motherboard Support
Yes
