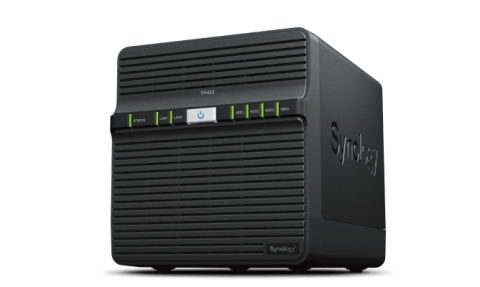

Synology DiskStation DS423 NAS Server 4 Bay
|
Specifications
|
|
CPU
|
CPU Model
|
Realtek RTD1619B
|
|
|
CPU Quantity
|
1
|
|
|
CPU Architecture
|
64-bit
|
|
|
CPU Frequency
|
4-core 1.7 GHz
|
|
|
Hardware Encryption Engine
|
|
|
Memory
|
System Memory
|
2 GB DDR4 non-ECC
|
|
|
Total Memory Slots
|
0
|
|
|
Notes
|
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
|
|
Storage
|
Drive Bays
|
4
|
|
|
Compatible Drive Type*
|
|
|
|
Hot Swappable Drive*
|
|
|
|
Notes
|
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
|
|
External Ports
|
RJ-45 1GbE LAN Port
|
2 (with Link Aggregation / Failover support)
|
|
|
USB 3.2 Gen 1 Port*
|
2
|
|
|
Notes
|
|
|
Appearance
|
Size (Height x Width x Depth)
|
184 mm x 168 mm x 230 mm
|
|
|
Weight
|
2.21 kg
|
|
Others
|
System Fan
|
80 mm x 80 mm x 2 pcs
|
|
|
Fan Speed Mode
|
-
Full-Speed Mode
-
Cool Mode
-
Quiet Mode
|
|
|
Brightness Adjustable Front LED Indicators
|
|
|
|
Power Recovery
|
|
|
|
Noise Level*
|
20.6 dB(A)
|
|
|
Scheduled Power On / Off
|
|
|
|
Wake on LAN / WAN
|
|
|
|
Power Supply Unit / Adapter
|
90 W
|
|
|
AC Input Power Voltage
|
100V to 240V AC
|
|
|
Power Frequency
|
50/60 Hz, Single Phase
|
|
|
Power Consumption
|
32.41 W (Access)
4.97 W (HDD Hibernation)
|
|
|
British Thermal Unit
|
110.52 BTU/hr (Access)
16.95 BTU/hr (HDD Hibernation)
|
|
|
Notes
|
-
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ËšC; Humidity: 58.2-61.8%
|
|
Temperature
|
Operating Temperature
|
0°C to 40°C (32°F to 104°F)
|
|
|
Storage Temperature
|
-20°C to 60°C (-5°F to 140°F)
|
|
|
Relative Humidity
|
5% to 95% RH
|
|
Certification
|
-
FCC
-
CE
-
BSMI
-
VCCI
-
RCM
-
UKCA
-
EAC
-
CCC
-
KC
|
|
Warranty
|
|
|
|
Notes
|
|
|
Environment
|
RoHS Compliant
|
|
Packaging Content
|
|
