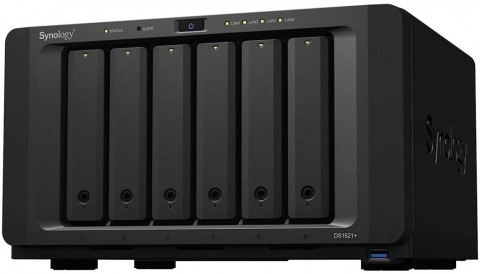

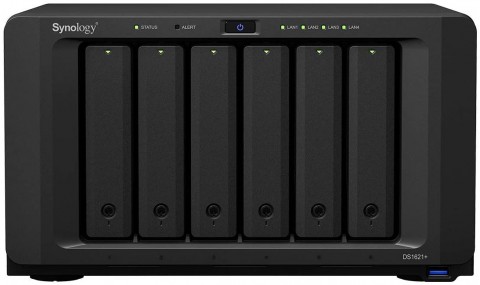

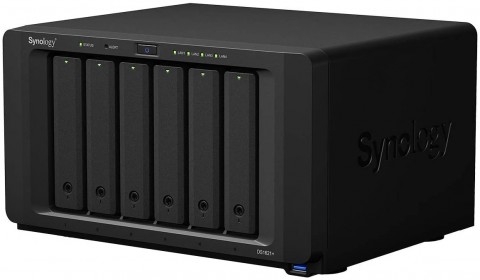

DiskStation DS1621+
Powerful, scalable, and versatile:
Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.
Faster than ever:
Compared to its predecessor, DS1621+ is faster in just about everything. Get things done quicker through Synology Drive and streamline photo management with Synology Moments.
Turbocharge and expand it:
Upgrade your DS1621+ to match your data requirements, whether it is for faster networking or for higher storage capacity.
2 x M.2 NVMe:
Enable ultra-fast NVMe cache to accelerate HDD arrays by 20X or more
10GbE support:
Add in faster SFP+ or RJ-45 networking to turbocharge existing workflows
Storage Expansion:
Supports two DX517 expansion units for a total of 16 bays
#Enclosure #online-shopping #NAS #NAS Enclosure #Synology #gtstore
Specifications:
|
CPU:
|
CPU Model
|
AMD Ryzen V1500B
|
|
|
CPU Quantity
|
1
|
|
|
CPU Architecture
|
64-bit
|
|
|
CPU Frequency
|
4-core 2.2 GHz
|
|
|
Hardware Encryption Engine (AES-NI)
|
|
|
Memory:
|
System Memory
|
4 GB DDR4 ECC SODIMM
|
|
|
Memory Module Pre-installed
|
4 GB (4 GB x 1)
|
|
|
Total Memory Slots
|
2
|
|
|
Maximum Memory Capacity
|
32 GB (16 GB x 2)
|
|
|
|
|
|
Storage:
|
Drive Bays
|
6
|
|
|
Maximum Drive Bays with Expansion Unit
|
16 (DX517 x 2)
|
|
|
M.2 Drive Slots
|
2 (NVMe)
|
|
|
|
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
|
|
|
Hot Swappable Drive
|
|
|
|
|
|
|

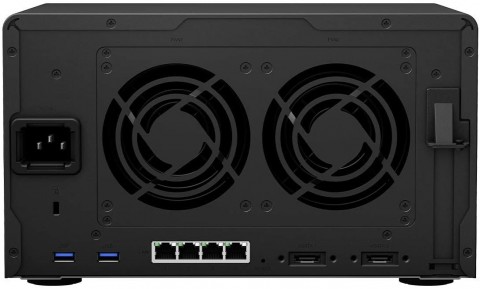

External Ports:
|
RJ-45 1GbE LAN Port
|
4 (with Link Aggregation / Failover support)
|
|
|
USB 3.2 Gen 1 Port*
|
3
|
|
|
eSATA Port
|
2
|
|
|
|
|
|
PCIe:
|
PCIe Expansion
|
1 x Gen3 x8 slot (x4 link)
|
|
File System:
|
Internal Drives
|
Btrfs
EXT4
|
|
|
External Drives
|
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
|
|
|
|
|
|
Appearance:
|
Size (Height x Width x Depth)
|
166 mm x 282 mm x 243 mm
|
|
|
Weight
|
5.1 kg
|
|
Others:
|
System Fan
|
92 mm x 92 mm x 2 pcs
|
|
|
Fan Speed Mode
|
Full-Speed Mode
Cool Mode
Quiet Mode
|
|
|
Easy Replacement System Fan
|
|
|
|
Brightness Adjustable Front LED Indicators
|
|
|
|
Power Recovery
|
|
|
|
Noise Level*
|
25.2 dB(A)
|
|
|
Scheduled Power On / Off
|
|
|
|
Wake on LAN / WAN
|
|
|
|
Power Supply Unit / Adapter
|
250 W
|
|
|
AC Input Power Voltage
|
100 V to 240 V AC
|
|
|
Power Frequency
|
50/60 Hz, Single Phase
|
|
|
Power Consumption*
|
51.22 W (Access)
25.27 W (HDD Hibernation)
|
|
|
British Thermal Unit
|
174.77 BTU/hr (Access)
86.22 BTU/hr (HDD Hibernation)
|
|
|
|
|
|
Temperature:
|
Operating Temperature
|
0°C to 40°C (32°F to 104°F)
|
|
|
Storage Temperature
|
-20°C to 60°C (-5°F to 140°F)
|
|
|
Relative Humidity
|
5% to 95% RH
|
|
Certification:
|
FCC
CE
BSMI
EAC
CCC
KC
VCCI
RCM
|
|
Environment:
|
RoHS Compliant
|
|
Packaging Content:
|
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
|
|
Optional Accessories:
|
DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G
Expansion Units: DX517
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 2280 NVMe SSD: SNV3410
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
VisualStation: VS360HD
Surveillance Device License Pack
|
