Overview
Features:
-
Capacity: 2000VA/1200W;
-
Metal case;
-
Dimension: 125×380×225mm;
-
AC Voltage regulation;
-
Short circuit protection;
-
Overload protection;
-
Battery overcharge protection;
-
Surge protection;
-
Overdischarge protection;
-
Configuration: 12 V / 9.0 Ah × 2.
Specifications
Technology
|
UPS type
|
Off-Line
|
|
Form factor
|
Tower
|
Input parameters
|
Power
|
480 VA
|
|
Current frequency
|
(50/60)±1Hz (Frequency self-adapt system)
|
Output parameters
|
Output voltage
|
220 / 230V ± 10%
|
|
Form voltage
|
Stepped approximation to a sinewave
|
|
Current frequency
|
50/60 Hz ± 1%
|
|
Switching time
|
2-4 ms, including the determination of the time
|
|
Automatic voltage regulation (AVR)
|
1 step down, two steps up
|
Protection and UPS equipment
|
Surge Protection
|
Yes
|
|
Overloads protectio
|
110% < Load percentage <120%, buzze beeps; load percentage >120%. output shuts off, buzzer beeps continuosly
|
|
Protection for UPS input
|
Fuse for overload protection and short circuit protection
|
|
UPS protection for short circuit
|
Immediate shutdown of the UPS using the input fuse
|
|
Protect the phone, fax, modem, LAN
|
No
|
Ports and interfaces
Battery
|
A type
|
Lead acid, sealed, maintenance-free
|
|
Voltage and battery capacity
|
12V / 4,5AH x 1
|
|
Typical recharge time
|
8 hours (up to full capacity of the battery)
|
|
Estimated battery backup time (at 50% load)
|
-
|
|
Estimated battery backup time (at 100% load)
|
-
|
|
Connecting additional battery
|
No
|
|
Cold start
|
Yes
|
|
Battery protection
|
Automatic verification of the battery and when the protection of the critical category
|
Physical parameters
|

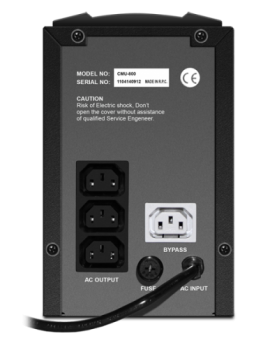

Output connectors
|
1 x Euro (Schuko) + 1 x IEC (Bypass)
|
|
UPS Dimensions (W * D * B) mm
|
280*101*142 mm
|
|
Weight, kg
|
3.4 kg
|
|
Indication
|
LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
|
|
Sound alarm
|
Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds);†low battery level - sound beeps (last 16 seconds);†overload - a very special sound signal (every 2 seconds);
|
Case features
Electrical connection to the front
