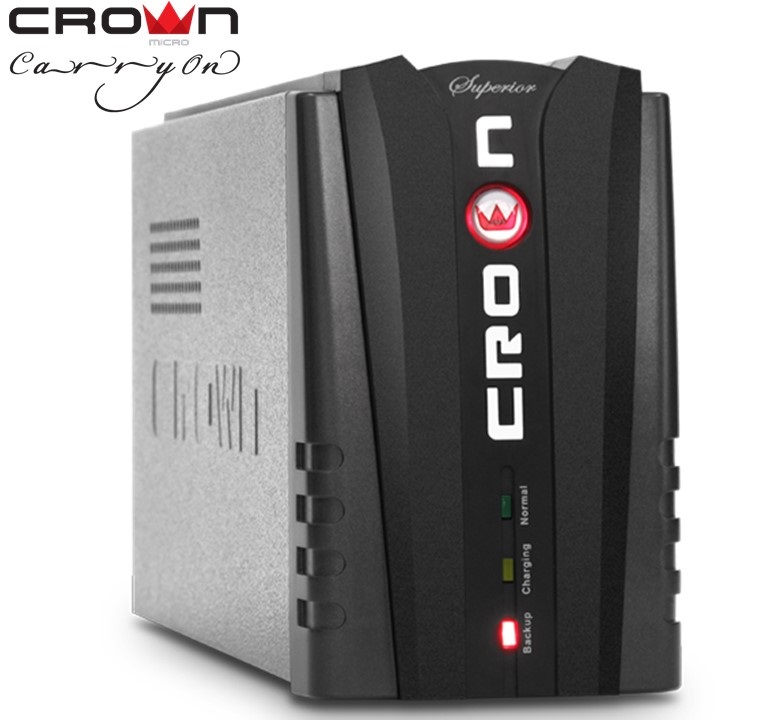

Design. New, fresh, fun look of uninterruptible power supplies to complement and supplement your stylish ensemble of computer equipment.
AVR - stabilizer. All models come with automatic voltage regulation - AVR. This technological solution extends equipment life by aligning the input voltage.
Batteries. All UPS CROWN used proprietary, sealed, maintenance-free, lead-acid batteries CROWN. CROWN batteries are characterized by their high quality, which is achieved due to high battery life.
UPS coating. Cases of all models painted with scratch-resistant paint, "Moire", a special dye is pleasant to the touch and allows you to store presentation UPS.
Retail packing. Updated appearance of the retail packaging of all UPS models CROWN. The new packaging features a new anti-shock design, which prevents damage to the UPS.
TECH SPECS:
Technology
UPS Type
Off-Line
execution
Form Factor
Tower
Input parameters
Power
500 VA / 300W
Input voltage
220/230/240V
Input voltage range
145 - 280 V
Current frequency
50/60 Hz ± 1% (auto sensing)
Output parameters
Output voltage
220 / 230V ± 10%
Form voltage
Stepped approximation to a sinewave
Current frequency
50/60 Hz ± 1%
Switching time
2-4 ms, including the determination of the time
Automatic voltage regulation (AVR)
1 step down, two steps up
Protection and UPS equipment
Surge Protection
Yes
UPS protection against overloads
Load ? 120% of the sound signal;†
120%, the output power is automatically turned off, the speaker begins to beep continuously
Protection for UPS input
Fuse for overload protection and short circuit protection
UPS protection for short circuit
Immediate shutdown of the UPS using the input fuse
Protect the phone, fax, modem, LAN
No
Ports and interfaces
USB-port
No
SNMP-card
No
Battery
A type
Lead acid, sealed, maintenance-free
Voltage and battery capacity
12V / 4,5AH x 1
Typical recharge time
8 hours (up to full capacity of the battery)
Estimated battery backup time (at 50% load)
-
Estimated battery backup time (at 100% load)
-
Connecting additional battery
No
Cold start
Yes
Battery protection
Automatic verification of the battery and when the protection of the critical category
Physical parameters
Output connectors
2 x IEC-320 C13 with redundant power and filtration, 1 x IEC-320 C13 Bypass
UPS Dimensions (W * D * B) mm
90x280x150
Weight, kg
6
Indication
LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
Sound alarm
Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds);†low battery level - sound beeps (last 16 seconds);†overload - a very special sound signal (every 2 seconds);
Case features
Material
Metal (0.5 mm)
Electrical connection to the front
Power cable
Removable c EURO plug (length 1.0 m)
Environmental Parameters
Acoustic noise
<40 dB (1 meter from the surface)
Working conditions
Humidity 0% to 90% non-condensing, temperature: 0 ~ 40 ?C
Guarantee
Standard warranty
10 Months
