CMU-800
Stylish, reliable, efficient - the CROWN UPS - is a guarantee of stable and long-term operation of your equipment.
You can safely shut down the PC, while keeping all data. The model is designed to protect personal computers and workstations from the major problems with power supply: high emissions of electromagnetic and radio frequency interference, slides, promotions and extinction voltage sources.
Features:
Working in comfort:
Uninterruptible power supply enables you to work comfortably at your computer without fear of a sudden power failure during operation. You can safely shut down the PC, while keeping all data.
Protection from basic power problems:
The model is designed to protect personal computers and workstations from the major problems with power supply: high emissions of electromagnetic and radio frequency interference, slides, promotions and extinction voltage sources.
Additionally:
-
Batteries: All UPS CROWN used proprietary, sealed, maintenance-free, lead-acid batteries CROWN. CROWN batteries are characterized by their high quality, which is achieved due to high battery life.
Specifications:
Technology:
Execution:
Input parameters:
|
Power
|
800VA/450W
|
|
Input voltage
|
220/230/240V
|
|
Input voltage range
|
145 - 280 V
|
|
Current frequency
|
50/60 Hz ± 1% (auto sensing)
|
Output parameters:
|
Output voltage
|
220 / 230V ± 10%
|
|
Form voltage
|
Stepped approximation to a sinewave
|
|
Current frequency
|
50/60 Hz ± 1%
|
|
Switching time
|
2-4 ms, including the determination of the time
|
|
Automatic voltage regulation (AVR)
|
1 step down, two steps up
|
Protection and UPS equipment:
|
Surge Protection
|
Yes
|
|
UPS protection against overloads
|
Load ? 120% of the sound signal;†
|
|
|
120%, the output power is automatically turned off, the speaker begins to beep continuously
|
|
Protection for UPS input
|
Fuse for overload protection and short circuit protection
|
|
UPS protection for short circuit
|
Immediate shutdown of the UPS using the input fuse
|
|
Protect the phone, fax, modem, LAN
|
No
|
Ports and interfaces:
Battery:
|
A type
|
Lead acid, sealed, maintenance-free
|
|
Voltage and battery capacity
|
12V9AH x 1
|
|
Typical recharge time
|
8 hours (up to full capacity of the battery)
|
|
Estimated battery backup time (at 50% load)
|
-
|
|
Estimated battery backup time (at 100% load)
|
-
|
|
Connecting additional battery
|
No
|
|
Cold start
|
Yes
|
|
Battery protection
|
Automatic verification of the battery and when the protection of the critical category
|
Physical parameters:
|

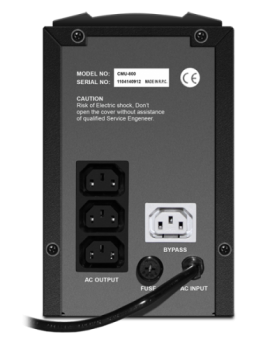

Output connectors
|
3 x IEC-320 C13 with redundant power and filtration, 1 x IEC-320 C13 Bypass
|
|
UPS Dimensions (W * D * B) mm
|
123x355x200
|
|
Weight, kg
|
10,5
|
|
Indication
|
LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
|
|
Sound alarm
|
Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds);†low battery level - sound beeps (last 16 seconds);†overload - a very special sound signal (every 2 seconds);
|
Case features:
Electrical connection to the front:
|
Power cable
|
Removable c EURO plug (length 1.0 m)
|
Environmental Parameters:
|
Acoustic noise
|
<40 dB (1 meter from the surface)
|
|
Working conditions
|
Humidity 0% to 90% non-condensing, temperature: 0 ~ 40 ?C
|
