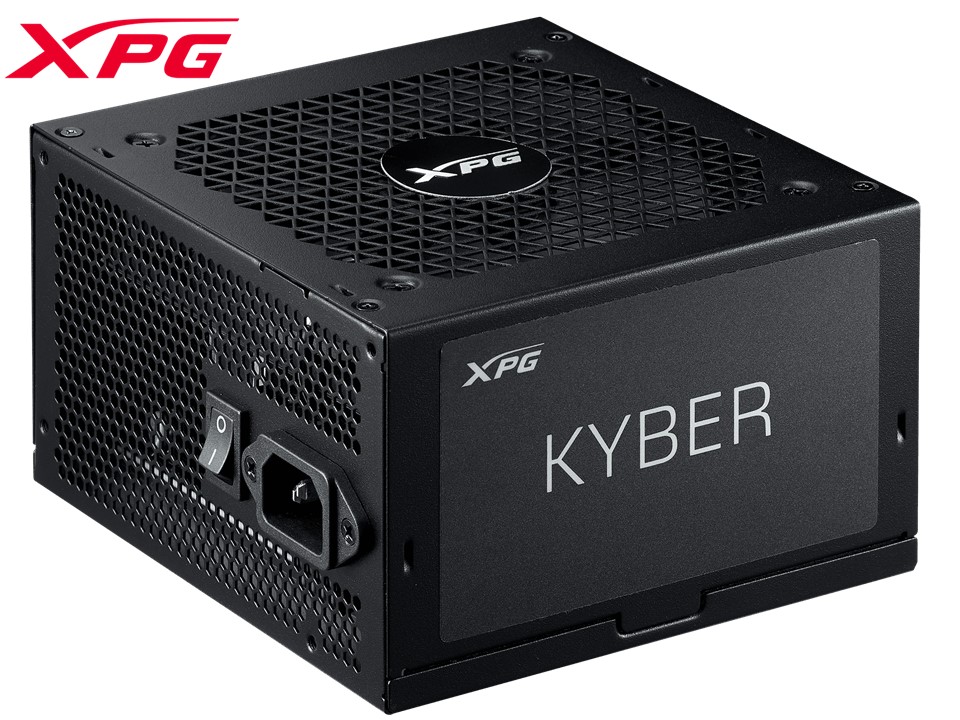

XPG KYBER 750W Gold ATX 3.1 Power Supply Unit
KYBER power supply units adhere to the Intel ATX 3.1 design guide specifications and offering a 12V-2x6 connector at 750 and 850 wattage category, KYBER can support the latest graphics cards, made specifically for those who require high graphic capability and performance.
TECH SPECS:
Dimensions (L x W x H)
140 x 150 x 86 mm
Warranty
5 Years
Weight
850W : 2.032Kg
750W :2.024Kg
650W :1.768Kg
12V-2x6 / 12VHPWR (12+4) Connector (600W)
850W : 1
750W : 1
650W : 0
Molex 4 Pin Connector
850W : 2
750W : 2
650W : 2
PCI-E 6+2 Pin Connector
850W : 2
750W : 2
650W : 2
EPS 8 Pin Connector
2
ATX 24 Pin Connector
1
Operating Voltage
100,000 hours
Fan Speed
2400
Fan Bearing
FDB
Fan Size
120 x 120 x 25mm
Operating Temperature
40 °C
Power Excursion
850W: 1700W (*up to 235% of the PSU's rated power for 100μs)
750W: 1500W (*up to 235% of the PSU's rated power for 100μs)
Total Output
850W /750W /650W
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Input Frequency
47 – 63 Hz
Input Current
850W : 12A
750W : 10A
650W :10A
Input Voltage
100V-240V
PFC
>0.99
Certification
CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM
Protections
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
ATX Version
850W /750W : ATX 3.1
650W : ATX 2.4
80 Plus Rating
GOLD
Cybenetics Rating
850W: PLATINUM
750W/650W: GOLD
