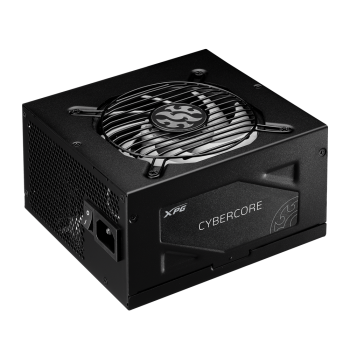

CYBERCORE Modular Power Supply

Specifications:

Dimensions (L x W x H):

160 x 150 x 86mm

80 PLUS RATING:

PLATINUM

ATX Version:

Intel ATX 12V v2.52

Protections:

OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP

Certification:

CE / CB/ FCC(IC) / TUV / cTUVus / TUV S-Mark / NOM / BSMI / UKCA / EAC

PFC:

>0.99

Input Voltage:

100-240V

Input Current:

1300W：15A
1000W：13A

Input Frequency:

1300W：50Hz-60Hz
1000W：50Hz-60Hz

Operating Temperature:

50°C

Fan Size:

120mm

Fan Bearing:

Dual Ball Bearing

Fan Speed:

2,150 RPM

MTBF:

120K hours at 25°C

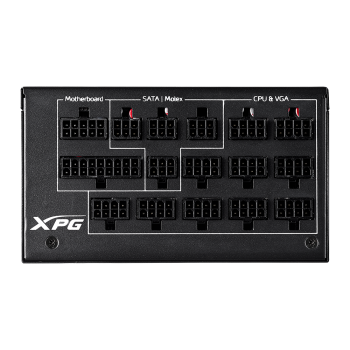

ATX 24 Pin Connector:

1300W：1
1000W：1

EPS 8 Pin Connector:

-

EPS 8 (4+4) Pin Connector:

1300W：2
1000W：2

PCI-E 6+2 Pin Connector:

1300W：10
1000W：6

SATA Connector:

1300W：16
1000W：12

Peripheral 4 Pin Connector:

1300W：8
1000W：4

Floppy 4 Pin Connector:

1300W：2
1000W：1

Weight:

1000W：

Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%
with Package：4.13kg (9.1lb) ±5%

1300W：

Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5%
with Package：4.6kg (10.1lb) ±5%
