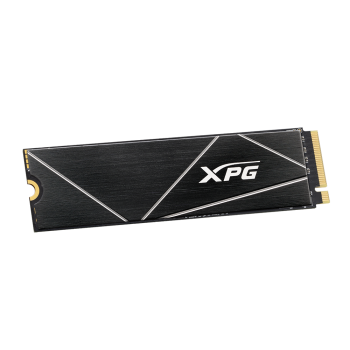

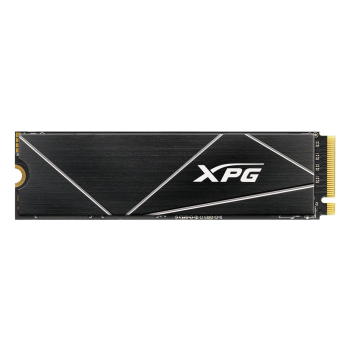

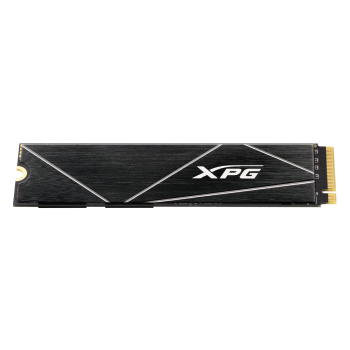

XPG GAMMIX S70 BLADE PCIe Gen4x4 M.2 2280 Solid State Drive
Speed Ahead with PCIe 4.0:
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.
Cool in the Heat of Battle:
Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.
Perfect for Compact and Thin Devices:
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.
Works with PS5:
Got a PS5 and need more capacity? The GAMMIX S70 BLADE is your answer. Plug one into your PS5 and enjoy better, smoother performance over the built-in storage.
*According to the announcement from Sony Interactive Entertainment Co., Ltd., even if the continuous reading and writing speed is higher than the official standard, not all in-game performance features will match the built-in solid state drive of the PS5 console.
**Under the operating environment of the PS5, the sequential read speed of both 1TB and 2TB models measured at 6100MB/s.
Made to Perform:
Boosting Your Performance:
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.
The Ultimate Game Cache:
Equipped with 3D NAND Flash memory, the S70 BLADE offers capacities of up to 2TB. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity.
Security and Integrity:
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.
Specifications:
Capacity:
1TB / 2TB
Form Factor:
M.2 2280
NAND Flash:
3D NAND
Controller:
Innogrit IG5236
Dimensions (L x W x H):
80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink),
80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)
Weight:
10g / 0.35oz (with heatsink),
7g / 0.24oz (without heatsink)
Interface:
PCIe Gen4x4
Sequential Read (Max*):
Up to 7400MB/s (PC/Laptop),
Up to 6100MB/s (PS5)
Sequential Write (Max*):
Up to 6800MB/s
4KB Random Read IOPS(Max*):
Up to 750K
4KB Random Write IOPS(Max*):
Up to 750K
Operating Temperature:
0°C - 70°C
Storage Temperature:
-40°C - 85°C
Shock Resistance:
1500G / 0.5ms
MTBF:
2,000,000 hours
Terabytes Written (TBW)(Max Capacity*):
1480TB
