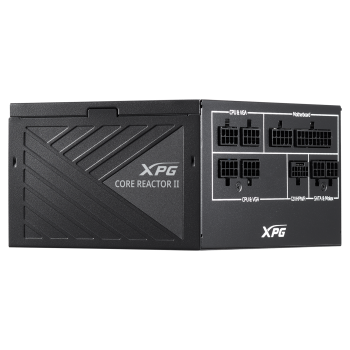

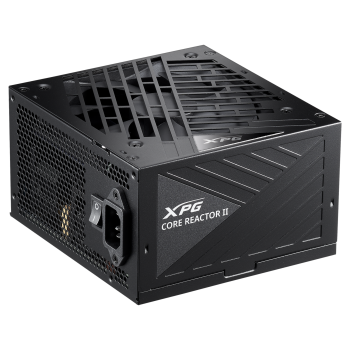

CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
TECH SPECS
Dimensions (L x W x H)
1200W: 160 x 150 x 86mm
80 Plus Rating
GOLD
ATX Version
ATX 12V v3.0 and EPS v2.92
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
1200W: 15A
Input Frequency
1200W:50Hz-60Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
Power Excursion
1200W: 2820W(*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
50°C

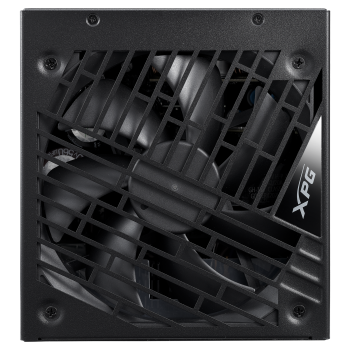

Fan Size
1200W: 135mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 Pin Connector
1200W:1
EPS 8 Pin Connector
1200W:2
PCI-E 6+2 Pin Connector
1200W:8
Molex 4 Pin Connector
1200W:3
12VHPWR (12 + 4) Connector (600W)
1200W:1
SATA Connector
1200W:9
Weight
1000W:
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
