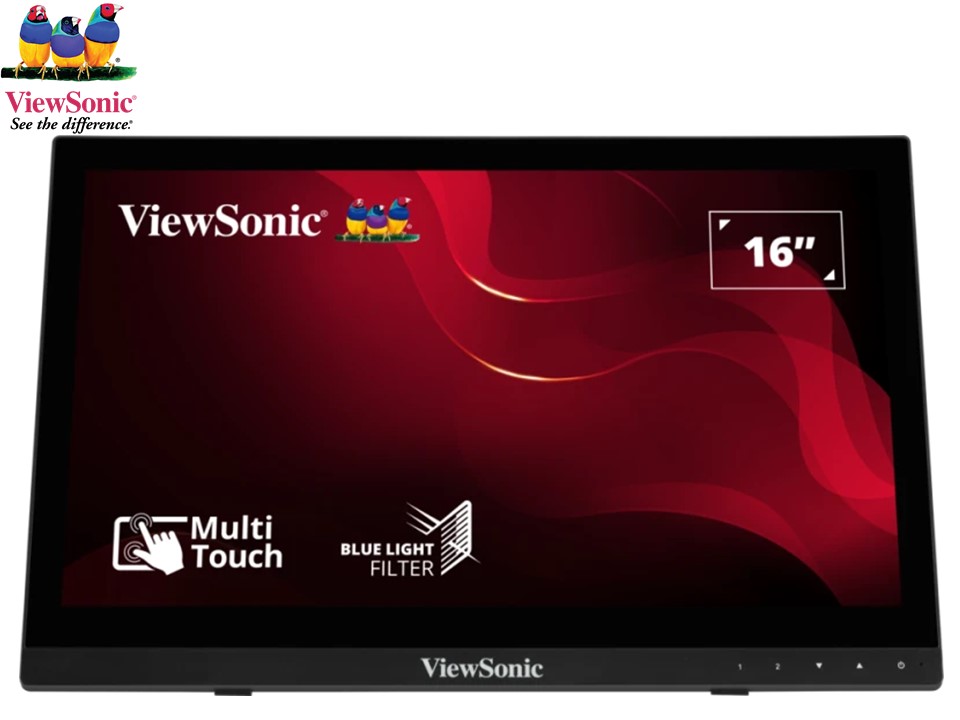

HD 768p Resolution
-
10-point projected capacitive touch
-
HDMI and VGA inputs
-
Dual integrated speakers
-
Durable, Scratch-resistant Screen
TECH SPECS:
Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA (Wide XGA)
Static Contrast Ratio: 500:1 (typ)
Dynamic Contrast Ratio: 10M:1
Light Source: LED
Brightness: 190 cd/m² (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 12ms
Viewing Angles: 90º horizontal, 60º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 67% size (Typ)
Pixel Size: 0.252 mm (H) x 0.252 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 0.83mm
Compatibility
PC Resolution (max): 1366x768
Mac® Resolution (max): 1366x768
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1366x768
Connector
VGA: 1
USB 2.0 Type B: 1
3.5mm Audio In: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
Audio
Internal Speakers: 1Watts x2
Power
Eco Mode (Conserve): 4.3W
Eco Mode (optimized): 4.9W
Consumption (typical): 5.5W
Consumption (max): 6W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: 30 ~ 61KHz
Frequency Vertical: 56 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): 15º / 50º
Weight (imperial)
Net (lbs): 2.9
Net Without Stand (lbs): 2.9
Gross (lbs): 5.5
Weight (metric)
Net (kg): 1.3
Net Without Stand (kg): 1.3
Gross (kg): 2.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.8 x 15.3 x 3.4
Physical (in.): 14.9 x 9.7 x 1.5
Physical Without Stand (in.): 14.9 x 9.7 x 1.5
Dimensions (metric) (wxhxd)
Packaging (mm): 453 x 389 x 86
Physical (mm): 379 x 247 x 37
Physical Without Stand (mm): 379 x 247 x 37
