AC1350 Dual-Band WiFi: Supports 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz*
-
5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
-
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
-
High-Security VPN: Supports multiple VPN protocols including IPSec / OpenVPN / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.â–³
-

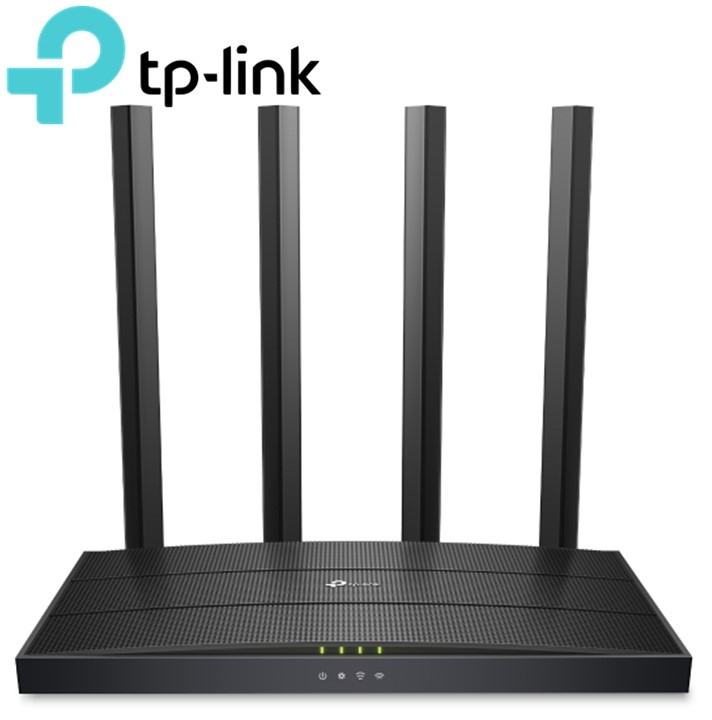

Boosted Coverage: Four external antennas extend and concentrate the Wi-Fi signals.
-
Abundant Security Features: Advanced functions such as DoS defense,IP/MAC/URL filtering, and more protect your network and data.
TECH SPECS:
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering†
• URL Filtering
• Web Security†
ARP Inspection • Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage)
Button Reset Button
Power Supply 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash 128 MB NAND
DRAM 512 MB DDR4
LED Power, SYS, 2.4G, 5G, WAN (1000/100/10M Link/Act), WAN/LAN (1000/100/10M Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)
Antenna • 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting Desktop/Wall-mounting
Max. Power Consumption • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
PERFORMANCE
GRE • Unencrypted: 624.2Mbps
• Encrypted: 301.5Mbps
WireGuard VPN 393.5Mbps
Concurrent Session 150,000
New Sessions /Second 5,100
NAT (Static IP) 937.2 Mbps / 936.1Mbps
NAT(DHCP) 945.8 Mbps / 940.6Mbps
NAT(PPPoE) 942.9 Mbps / 942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 646.9Mbps
• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps
OpenVPN 129.3Mbps
L2TP VPN Throughput • Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps
PPTP VPN Throughput • Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps
SSL VPN Throughput 126.7Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps
WIRELESS FEATURES
Advanced Features • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FEATURES
Access Control IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
• RIP†
• OSPF†
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)â–³
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)â–³
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)â–³
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP
MANAGEMENT FEATURES
Omada App Yes.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS
Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content • ER706W
• Power Adapter
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
