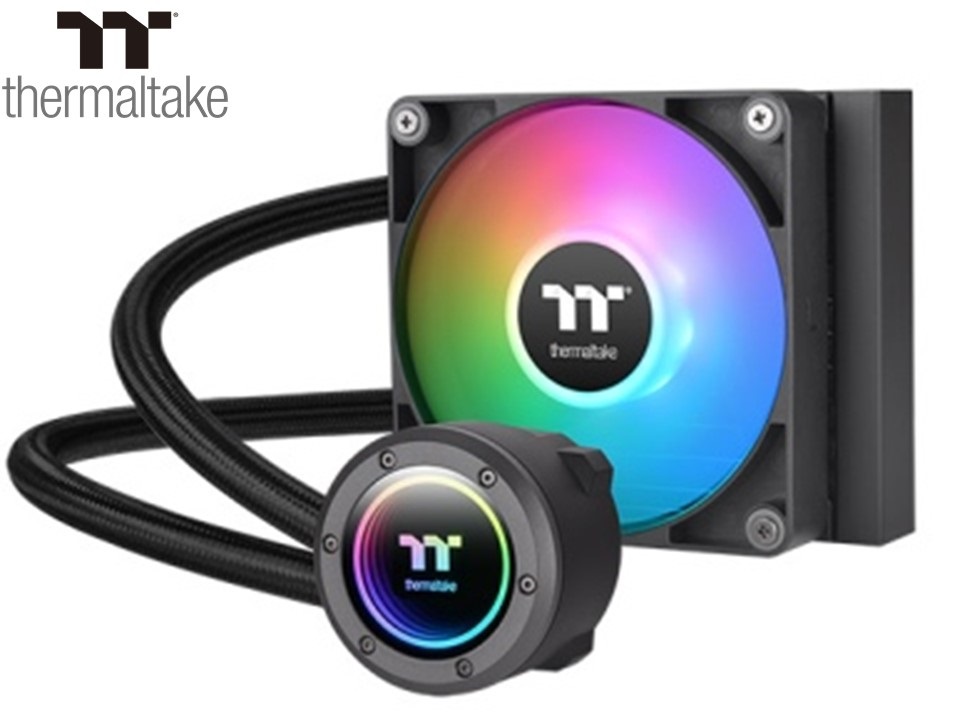

TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with one CT120 ARGB fan, the TH120 V2 ARGB is suitable for small chassis that can fit 120mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.
TECH SPECS:
P/N
CL-W360-PL12SW-A
PUMP
Speed : PWM 1500~3300 R.P.M
Rated Voltage : 12 V & 5V
Rated Current : 0.43 A & 0.32 A
Power Input : 5.16 W & 1.6 W
Connector : 2510–4 Pin / 5V ARGB header–3 Pin
WATER BLOCK
Material : Copper
FAN
Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R.P.M
Noise Level : 25.8 dB-A
Rated Voltage : 12 V & 5V
Rated Current : 0.11 A & 0.31 A (one fan)
Power Input : 1.32 W & 1.55 W (one fan)
Max. Air Flow : 57.05 CFM
Max. Static Pressure : 2.23 mm-H2O
Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
Bearing Type : Hydraulic Bearing
Life expectation : 40,000 hrs,25℃
TUBE
Length : 460 mm
Material : Rubber
RADIATOR
Dimension : 157 x 120 x 27 mm
Material : Aluminum
COMPATIBILITY
Intel: LGA 1851/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2
TDP
290 W
