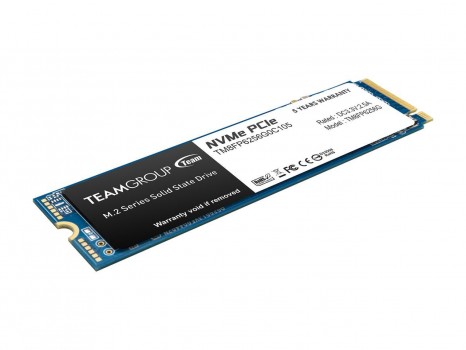

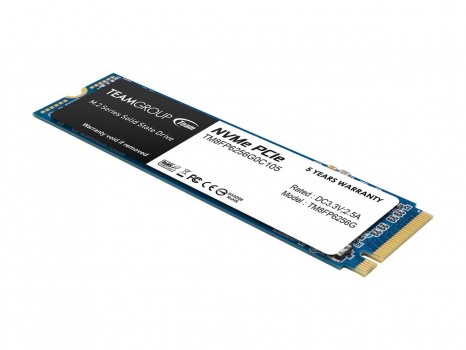

MP33 M.2 PCIe SSD 1TB
2TB, 1TB, 512GB, 256GB, 128GB
FEATURES:
The best bargain for upgrading:
TEAMGROUP releases the new – MP33 M.2 PCIe Solid State Drive. It uses high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard. With 3D nand flash memory, it is a great bargain and the performance is excellent. Both laptop and PC users can afford it easily, making it the best choice for upgrading.
3 times faster than SATA III:
The maximum read/write speed of MP33 M.2 PCIe Solid State Drive is 1,800/1,500MB/s, which is three times faster than SATA 6Gb/s interface. It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers the finest and smoothest gaming experience and extremely high-speed performance without any lag even loading heavy duty video/graphics editing software and games.
Available in all capacities:
MP33 M.2 PCIe Solid State Drive are available in capacities of 128GB, 256GB, 512GB, 1TB, etc. Using the size of current mainstream specification 2280(W:22mm x L:80mm), it can be directly installed in the M.2 slot on the latest Intel and AMD motherboards. It is lightweight, thin, compact and supports Intel and AMD’s new platform. Suitable for players who have needs in speed, and it is the top choice when it comes to upgrading PC or laptop.
Comprehensive smart management mechanism:
MP33 M.2 PCIe Solid State Drive supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command which are able to ensure operation efficiency, enhance the service life of the solid state drive and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy and reliability of data transfer and prolong the service life of the solid state drive.
Specifications:
|
Model
|
MP33 M.2 PCIe SSD
|
|
Interface
|
PCIe 3.0 x4 with NVMe 1.3
|
|
Capacity
|
128GB / 256GB / 512GB / 1TB / 2TB
|
|
Voltage
|
DC +3.3V
|
|
Operation Temperature
|
0ËšC ~ 70ËšC
|
|
Storage Temperature
|
-40ËšC ~ 85ËšC
|
|
Terabyte Written
|
128GB / >75TB
256GB / >150TB
512GB / >350TB
1TB / >600TB
2TB / >1000TB
|
|
Performance
|
Crystal Disk Mark:
128GB Read/Write: up to 1,500/500 MB/s
256GB Read/Write: up to 1,600/1,000 MB/s
512GB Read/Write: up to 1,700/1,400 MB/s
1TB Read/Write: up to 1,800/1,500 MB/s
2TB Read/Write: up to 1,800/1,500 MB/s
IOPS:
128GB Read/Write: 90K/100K IOPS Max
256GB Read/Write: 160K/200K IOPS Max
512GB Read/Write: 220K/200K IOPS Max
1TB Read/Write: 220K/200K IOPS Max
2TB Read/Write: 220K/200K IOPS Max
|
|
|
|
|
Weight
|
6g
|
|
Dimensions
|
80(L) x 22(W) x 3.8(H) mm
|
|
Humidity
|
RH 90% under 40°C (operational)
|
|
Vibration
|
80Hz~2,000Hz/20G
|
|
Shock
|
1,500G/0.5ms
|
|
MTBF
|
1,500,000 hours
|
|
Operating System
|
System Requirements:
|
Precautions:
[1] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[2] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[3] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[4] PCIe SSD works best under WIN8.1 and WIN10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install NVMe Driver prior installing the SSD.
