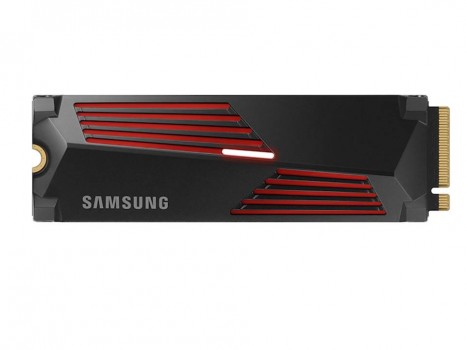

Samsung 990 PRO (Heatsink) M.2 1TB SSD read/write speeds up to 7450/6900 MB/s
• Designed for tech enthusiasts, hardcore gamers and heavy-workload professionals who want blazing fast speed.
• Compatible with Playstation®5.
• The integrated heatsink disperses heat to maintain speed, power, efficiency and thermal control, preventing downtime overheating on consoles and PCs.
• Sequential read/write speeds up to 7,450/6,900 MB/s.
TECH SPECS:
Application
Client PCs, Game Consoles
Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Interface
PCIe Gen 4.0 x4, NVMe 2.0
Dimension (WxHxD)
80 x 24.3 x 8.2 mm (with heatsink)
Weight
Max 28.0g Weight
Form Factor
M.2 (2280)
Storage Memory
Samsung V-NAND 3-bit MLC
Controller
Samsung in-house Controller
Cache Memory
Samsung 1GB Low Power DDR4 SDRAM
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
Sequential write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB ,QD32)
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB ,QD32)
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB ,QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB ,QD1)
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
Product Type
990 PRO with Heatsink
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Management SW
Magician Software for SSD management
Product
1-Year Limited Warranty
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Average Power Consumption (system level)
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Installation Kit
Not Available
