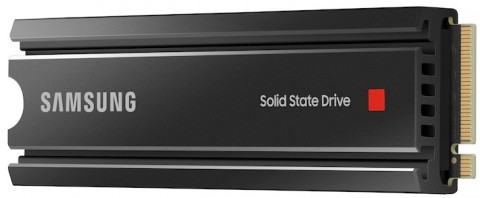

980 PRO w/ Heatsink PCIe 4.0 NVMe SSD 2TB
Next-level performance with maximum heat control:
Unleash the power of the Samsung 980 PRO with Heatsink for next-level computing and gaming. With a PCIe® 4.0 NVMe™ interface, get up to 2x the data transfer rate of PCIe® 3.0* while remaining compatible with PCIe® 3.0.
The integrated heatsink disperses heat to maintain speed, power efficiency, and thermal control, preventing downtime from overheating on Playstation® 5 and PCs.
Top Speed:
Get read speeds up to 7,000 MB/s¹ with 980 PRO with Heatsink and push the limits of what SSDs can do. Powered by an in-house controller designed to harmonize the flash memory components and the interface for top speed – with a PCIe® 4.0² interface that’s 2x faster than PCIe® 3.0 SSDs³ and 12x faster than Samsung SATA SSDs⁴ – every component of this NVMe™ SSD is manufactured by Samsung for
performance that lasts.
A winning combination:
The 980 PRO with Heatsink delivers an additional layer of thermal control for smart heat management to reduce heat. Achieve fully immersive gameplay with sustained high-performance bandwidth and through put for heavy-duty applications in gaming, graphics, data analytics, and more. Load games fast, so you can play more and wait less.
Smart thermal control:
High-performance SSDs require high-performance thermal control. The 980 PRO with Heatsink uses Samsung's own nickel-coated high-end controller to deliver effective thermal control of the NAND chip. With the added heatsink, play confidently on PlayStation®5 gaming consoles and PC systems without worries of sudden performance drops from overheating.
A Perfect Fit for PlayStation®5:
The 980 PRO with Heatsink has a thin 8.6mm housing, which perfectly fits the PlayStation®5. Its slim size and optimized power efficiency are also ideal for building high-performance PC computing and gaming systems.
Samsung Magician software:
Unlock the full potential of 980 PRO with Samsung Magician's advanced, yet intuitive optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
World's No.1 Flash Memory Brand:
Experience the performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Specifications:
General Feature:
Product Type:
NVMe™ SSD
Family Line:
980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD
Capacity:
2TB
Interface:
PCIe® 4.0
Compatibility:
PC & Playstation® 5
Performance:
Encryption:
AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)
Type:
Interface:
PCIe Gen 4.0 x4, NVMe 1.3c
Read/Write Speeds:
7,000/5,100MB/s
Usage Application:
Client PCs, Game Consoles
Storage:
Capacity:
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features:
Sequential Read Speed:
Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed:
Up to 5,100 MB/s * Performance may vary based on system hardware & configuration
Compatibility:
980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.
Cache Memory:
Samsung 2GB Low Power DDR4 SDRAM
Trim Support:
Supported
S.M.A.R.T. Support:
Supported
GC (Garbage Collection):
Auto Garbage Collection Algorithm
WWN Support:
Not supported
Device Sleep Mode Support:
Yes
Thermal protection:
Heatsink
General:
Average Power Consumption (system level):
*Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle):
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF):
1.5 Million Hours Reliability (MTBF)
Environmental Specs:
Shock:
1,500 G & 0.5 ms (Half sine)
Form Factor:
Product:
M.2 (2280) with Heatsink complying PCI-SIG® D8 standard
Dimensions (W x H x D):
Product:
24 x 80 x 8.6 mm (with heatsink)
Weight:
Product:
Max 30.5g
