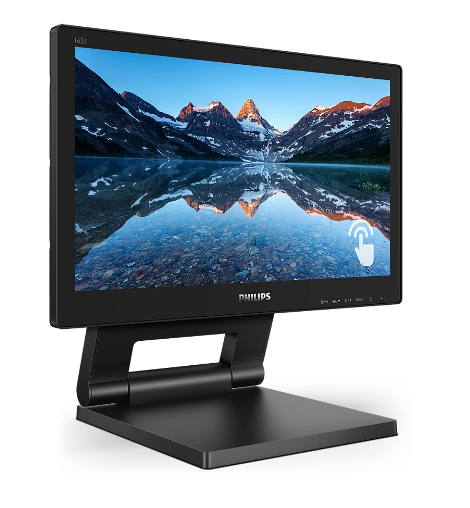

Philips LCD 162B9T 16"Inches monitor with Smooth Touch
A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.
Technical Specifications
Picture/Display
Panel Size
15.6 inch / 39.6 cm
Aspect ratio
16:9
LCD panel type
TFT-LCD (TN)
Backlight type
W-LED system
Pixel pitch
0.252 x 0.252 mm
Optimum resolution
1366 x 768 @ 60Hz
Brightness
220 cd/m²
Display colors
262 K
Color gamut (typical)
NTSC 86%*, sRGB 100%*
Contrast ratio (typical)
500:1
SmartContrast
20,000,000:1
Response time (typical)
4 ms (Gray to Gray)*
Viewing angle
90º (H) / 60º (V)
@ C/R > 10
Picture enhancement
SmartImage
Effective viewing area
344.2 (H) x 193.5 (V)
Scanning Frequency
30 - 60 kHz (H) / 50 - 75 Hz (V)
sRGB
Yes
Pixel Density
100 PPI
LowBlue Mode
Yes
EasyRead
Yes
Touch
Ingress protection
IP65 - front only
Operating system
Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions*
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
Touch active area
344.2 mm (H) x 193.5 mm (V)
Touch glass hardness
7 H
Touch interface
USB
Touch method
Stylus, Finger, Glove*
Touch points
10 point
Touch technology
Projected capacitive
Palm rejection area
>= 25 x 25 mm
Touch glass coating
Glare
Connectivity
Signal Input
VGA (Analog )
DVI-D (digital, HDCP)
DisplayPort 1.2
HDMI 1.4
USB
USB 3.1x2 (1 w/fast charging)*
Sync Input
Separate Sync
Sync on Green
Audio (In/Out)
PC audio-in
Headphone out
HDCP
HDCP: HDCP 1.4 (HDMI / DP / DVI)
Convenience
Built-in Speakers
2 W x 2
Plug & Play Compatibility
DDC/CI
sRGB
Windows 10 / 8.1 / 8 / 7
User convenience
SmartImage
Input
Brightness
Menu
Power On/Off
OSD Languages
Brazil Portuguese
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian
Other convenience
Kensington lock
VESA mount (100x100mm)
Control software
SmartControl
Stand
Height adjustment
184 (Horizontal), 105 (Vertical) mm
Tilt
-5 ~ 90 degree
Folding angle
0 ~ 70 degree
Power
ECO mode
5.6 W (typ.)
Power supply
External
100-240VAC, 50-60Hz
Off mode
0.3 W (typ.)
On mode
7.1 W (typ.) (EnergyStar test method)
Standby mode
0.3 W (typ.)
Power LED indicator
Operation - White
Standby mode- White (blinking)
Dimensions
Packaging in mm (WxHxD)
445 x 388 x 159 mm
Product without stand (mm)
378 x 241 x 42 mm
Product with stand(max height)
378 x 347 x 227 mm
Weight
Product with packaging (kg)
6.31 kg
Product with stand (kg)
5.00 kg
Product without stand (kg)
2.01 kg
Operating conditions
Altitude
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation)
0°C to 40°C °C
Relative humidity
20%-80 %
Temperature range (storage)
-20°C to 60°C °C
MTBF (demonstrated)
70,000 hrs (excluded backlight)
Sustainability
Environmental and energy
EnergyStar 8.0
EPEAT*
RoHS
WEEE
Recyclable packaging material
100 %
Specific Substances
PVC / BFR free housing
Mercury free
Compliance and standards
Regulatory Approvals
CB
CE Mark
FCC Class B
SEMKO
UKRAINIAN
ICES-003
TUV/GS
TUV Ergo
CU-EAC
EAEU RoHS
Cabinet
Finish
Texture
Foot
Black
Front bezel
Black
Rear cover
Black
