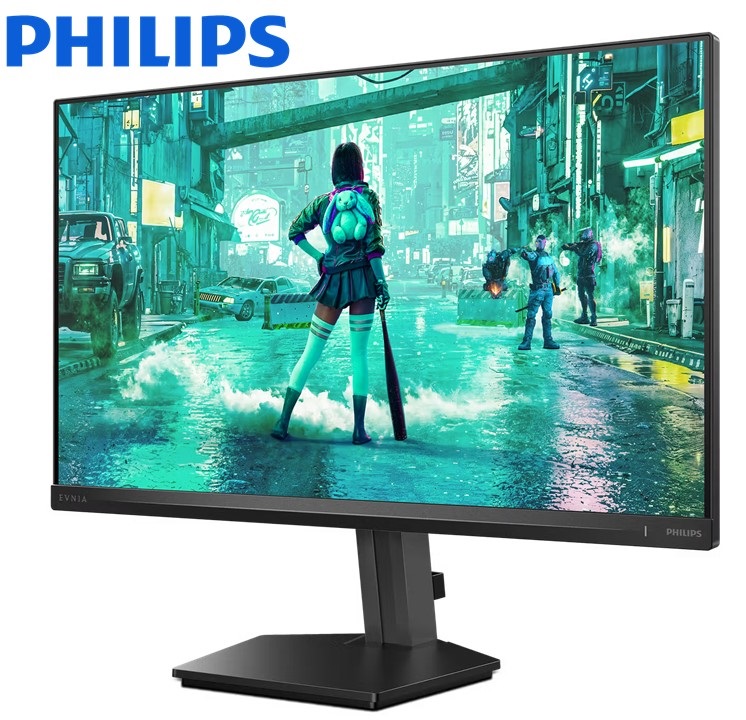

This monitor is equipped with a rapid 180Hz refresh rate and 1ms Smart MBR, so that you can play your game at real-time speed accompanied with crisp and detailed imaging.
TECH SPECS:
Specifications
Cabinet
COLOR
Dark Slate
FINISH
Textured
Compliance and standards
REGULATORY APPROVALS
CB; TUV/ISO9241-307; TUV-BAUART; CCC; CE Mark; CECP; CEL; FCC; ICES-003
Connectivity
SYNC INPUT
Separate Sync
AUDIO (IN/OUT)
Audio out
HDCP
HDCP 1.4 (HDMI / DisplayPort), HDCP 2.2 (HDMI / DisplayPort)
SIGNAL INPUT
HDMI 2.0 x 2, DisplayPort 1.4 x 1
Convenience
USER CONVENIENCE
Power On/Off; Menu/OK; Input/Up; Game Settings/Down; SmartImage game/Back
OSD LANGUAGES
Brazil Portuguese; Czech; Dutch; English; Finnish; French; German; Greek; Hungarian; Italian; Japanese; Korean; Polish; Portuguese; Russian; Spanish; Simplified Chinese; Swedish; Turkish; Traditional Chinese; Ukrainian
OTHER CONVENIENCE
Kensington lock; VESA mount (100x100mm)
PLUG & PLAY COMPATIBILITY
DDC/CI; Mac OS X; sRGB; Windows 11 / 10 / 8.1 / 8
Design
DESIGNED IN AMSTERDAM, NL
Yes
Dimensions
PRODUCT WITH STAND(MAX HEIGHT)
557 x 508 x 239 mm
PRODUCT WITHOUT STAND (MM)
557 x 331 x 64 mm
PACKAGING IN MM (WXHXD)
730 x 420 x 188 mm
Operating conditions
TEMPERATURE RANGE (OPERATION)
0°C to 40 °C
TEMPERATURE RANGE (STORAGE)
-20°C to 60 °C
RELATIVE HUMIDITY
20%-80 %
ALTITUDE
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
MTBF
50,000 (Excluded backlight)
Picture / display
LCD PANEL TYPE
IPS technology
BACKLIGHT TYPE
W-LED system
PANEL SIZE
24.5 inch / 62.2 cm
EFFECTIVE VIEWING AREA
543.744 (H) x 302.62 (V)
DISPLAY SCREEN COATING
Anti-Glare, 3H, Haze 25%
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL)
1 ms (Gray to Gray)*
BRIGHTNESS
300 cd/m²
CONTRAST RATIO (TYPICAL)
1000:1
PIXEL PITCH
0.2832 x 0.2802 mm
VIEWING ANGLE
178º (H) / 178º (V); @ C/R > 10
DISPLAY COLORS
16.7M (8bits)
SCANNING FREQUENCY
30 - 255 kHz (H) / 48 - 180 Hz (V)
SRGB
Yes
PICTURE ENHANCEMENT
SmartImage game
PIXEL DENSITY
89.91 PPI
FLICKER-FREE
Yes
LOWBLUE MODE
Yes
EASYREAD
Yes
AMD FREESYNC™ TECHNOLOGY
Yes
MAXIMUM RESOLUTION
1920 x 1080 @ 180 Hz
G-SYNC
Yes
SMART MBR
1 ms*
SMARTCONTRAST
Mega Infinity DCR
COLOUR GAMUT (TYPICAL)
DCI-P3:93.5%, sRGB: 122%, NTSC 104%, Adobe RGB 103%*
HDR
HDR 10 supported
Power
ON MODE
19.1 W (typ.)
STANDBY MODE
0.5 W (typ.)
OFF MODE
0.3 W (typ.)
POWER LED INDICATOR
Operation - White; Standby mode- White (blinking)
POWER SUPPLY
Internal; 100-240VAC, 50-60Hz
Sustainability
ENVIRONMENTAL AND ENERGY
RoHS
RECYCLABLE PACKAGING MATERIAL
100 %
SPECIFIC SUBSTANCES
Mercury free; PVC / BFR free housing
Stand
HEIGHT ADJUSTMENT
130 mm
TILT
-5/20 degree
PIVOT
-/+ 90 degree
SWIVEL
-/+ 30 degree
Weight
PRODUCT WITH STAND (KG)
4.55 kg
PRODUCT WITHOUT STAND (KG)
3.30 kg
PRODUCT WITH PACKAGING (KG)
7.54 kg
