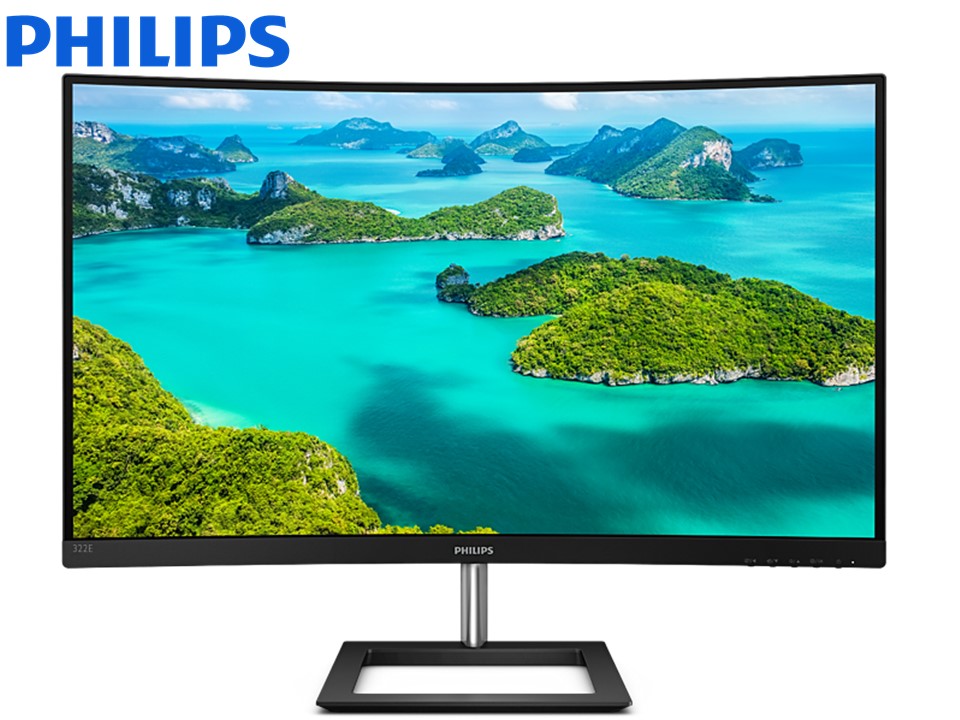

E Line
-
32 (31.5" / 80 cm diag.)
-
1920 x 1080 (Full HD)
TECH SPECS:
icture/Display
Panel Size
31.5 inch / 80 cm
Aspect ratio
16:9
LCD panel type
VA LCD
Backlight type
W-LED system
Pixel pitch
0.36375x0.36375mm
Brightness
300 cd/m²
Display colors
16.7 M
Contrast ratio (typical)
3000:1
SmartContrast
Mega Infinity DCR
Response time (typical)
4 ms (Gray to Gray)*
Viewing angle
178º (H) / 178º (V)
@ C/R > 10
Picture enhancement
SmartImage game
Maximum resolution
1920 x 1080 @ 100 Hz
Effective viewing area
698.4 (H) x 392.85 (V) mm - at a 1500R curvature*
Scanning Frequency
VGA : 30K - 85 kHz (H) / 48 - 75 Hz (V), HDMI/DP : 30K - 115 kHz (H) / 48 - 100 Hz (V)
sRGB
Yes
Flicker-free
Yes
Pixel Density
70 PPI
LowBlue Mode
Yes
Display Screen Coating
Anti-Glare, 3H, Haze 40%
MPRT
1 ms*
Adaptive sync (VRR)
Yes
Connectivity
Signal Input
VGA (Analog )
HDMI 1.4
DisplayPort 1.2
Sync Input
Separate Sync
Sync on Green
Audio (In/Out)
Audio out
HDCP
HDCP1.4 (HDMI /DisplayPort)
Convenience
Plug & Play Compatibility
DDC/CI
Mac OS X
sRGB
Windows 11 / 10
User convenience
Power On/Off
Menu
Brightness
Input
SmartImage
Stand
Tilt
-5/20 degree
Power
Power supply
Internal
100-240VAC, 50-60Hz
Off mode
0.3 W (typ.)
On mode
35.2 W (typ.)
Standby mode
0.5 W (typ.)
Power LED indicator
Operation - White
Standby mode- White (blinking)
Dimensions
Product with stand (mm)
709 x 523 x 281 mm
Packaging in mm (WxHxD)
780 x 610 x 224 mm
Product without stand (mm)
709 x 425 x 88 mm
Weight
Product with packaging (kg)
11.84 kg
Product with stand (kg)
6.74 kg
Product without stand (kg)
5.92 kg
Operating conditions
Altitude
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation)
0 to 40 °C
MTBF
50,000 hrs (excluding backlight) hour(s)
Relative humidity
20%-80 %
Temperature range (storage)
-20 to 60 °C
Sustainability
Environmental and energy
RoHS
Mercury Free
Recyclable packaging material
100 %
Compliance and standards
