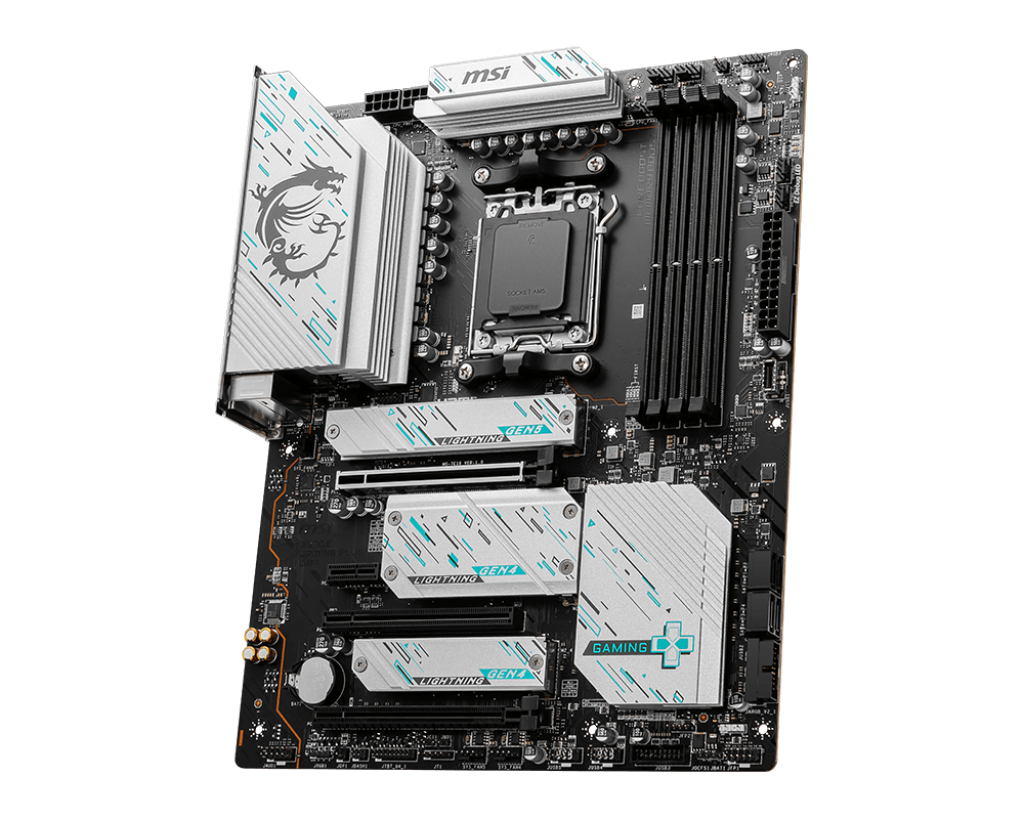

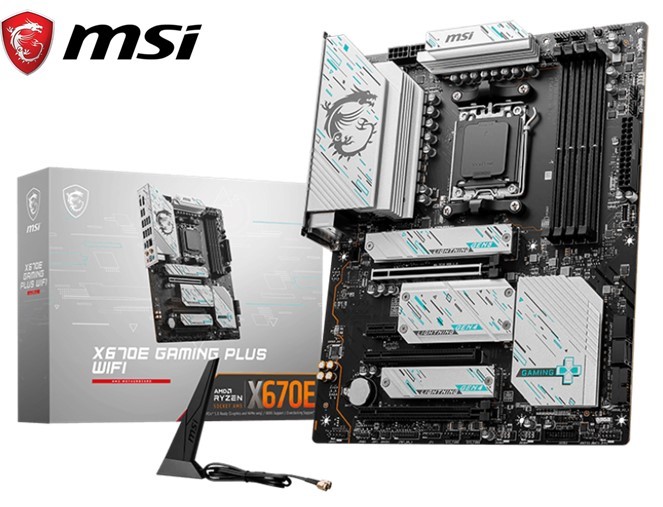

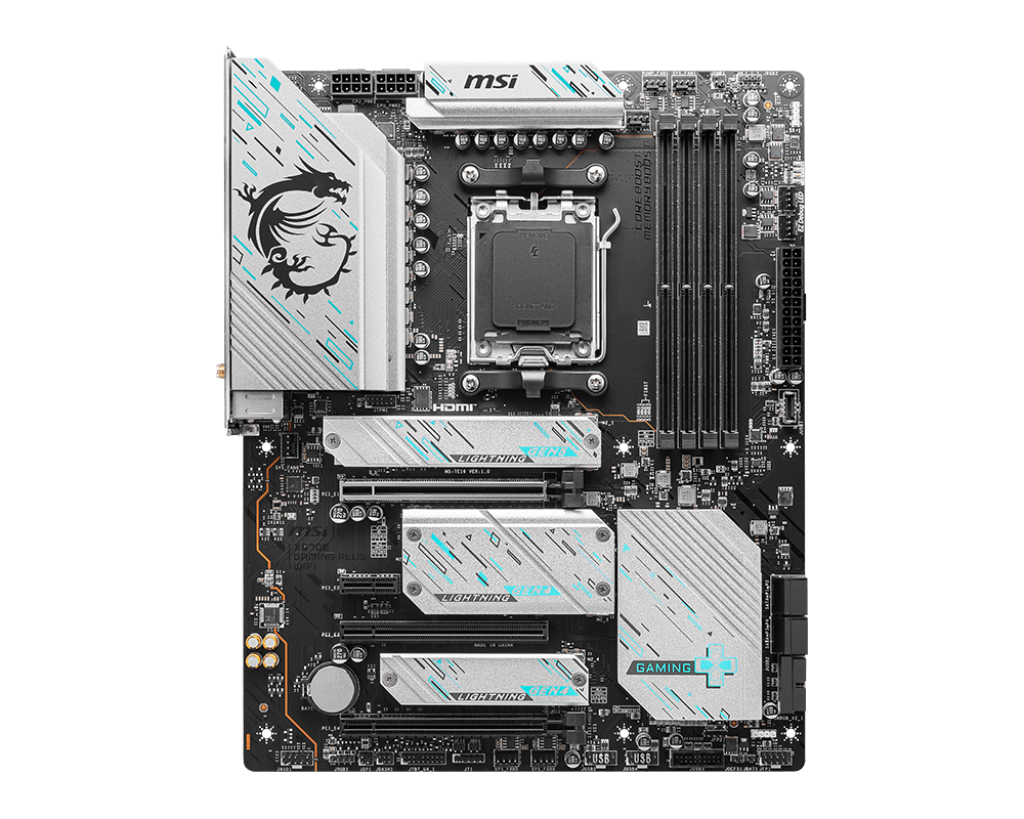

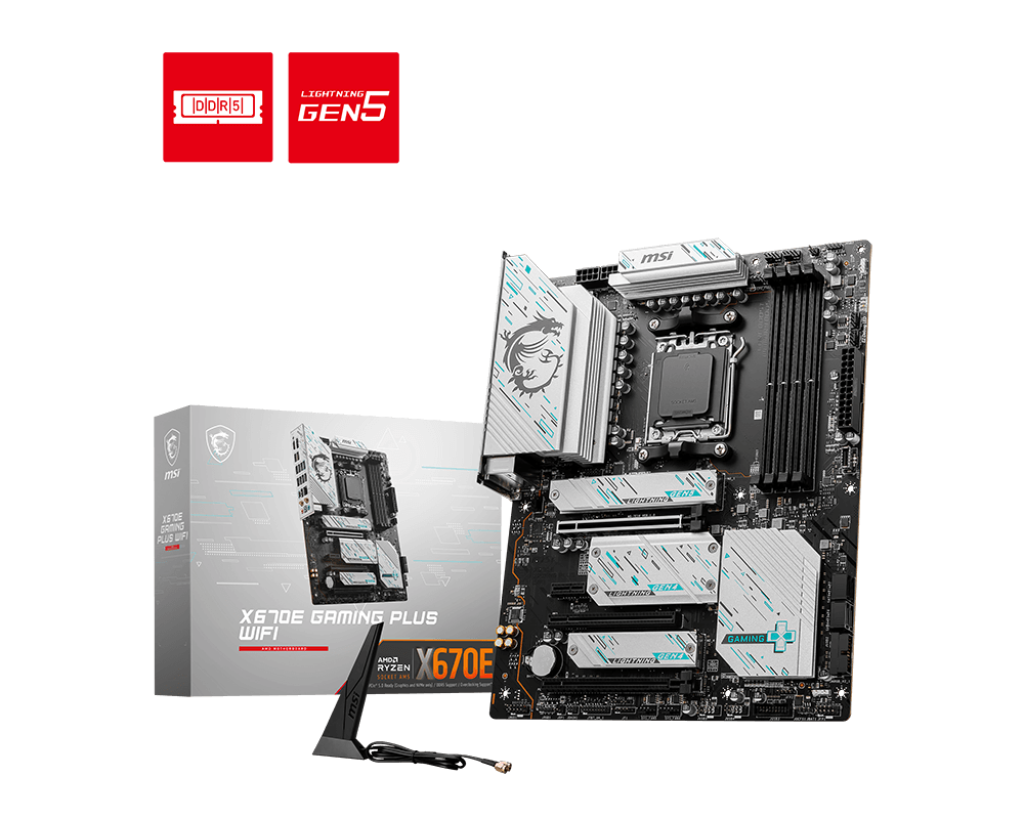

MSI X670E GAMING PLUS WIFI DDR5 AMD Ryzen 9/8/7000 AM5 Series Gaming Motherboard
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, up to 7800+(OC) MHz
-
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
-
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
-
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
-
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
-
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
TECH SPECS:
|
Chipset
|
AMD X670
|
|
CPU
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
|
Memory
|
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
|
|
Onboard Graphics
|
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
|
|
Slot
|
3x PCI-E x16 slot
Supports x16/x1/x4
• Supports x16/x1/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x1/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x1/x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
|
Audio
|
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
|
Storage
|
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
|
|
RAID
|
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
|
|

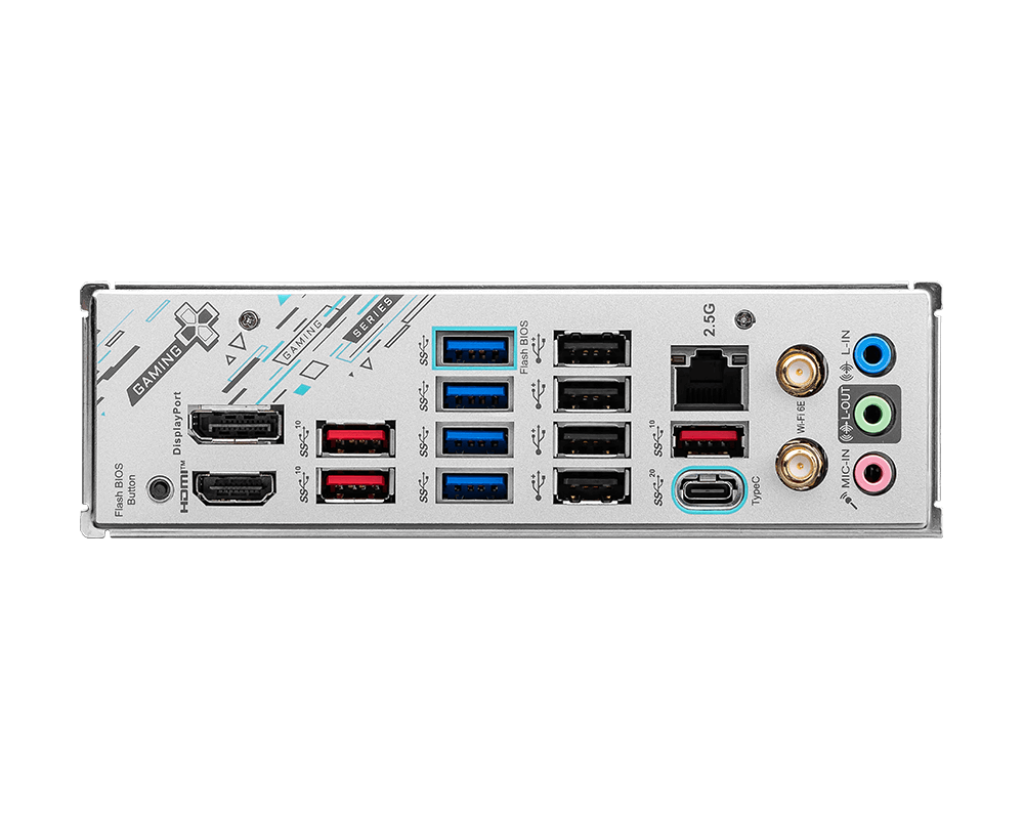

USB
|
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
|
|
LAN
|
Realtek® RTL8125BG 2.5Gbps LAN
|
|
Internal IO
|
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
|
|
WIRELESS LAN & BLUETOOTH
|
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
|
|
LED FEATURE
|
4x EZ Debug LED
|
