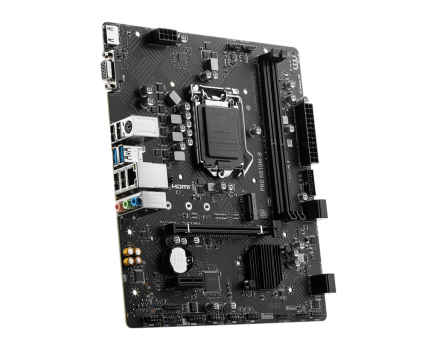

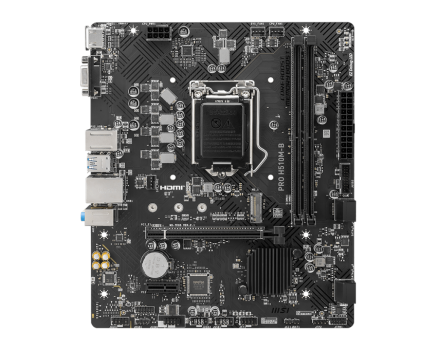

MSI PRO H510M-B DDR4 Intel LGA1200 10th Gen Gaming Motherboard
-
Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
-
Supports DDR4 Memory, up to 2933MHz (MAX)
-
Core Boost : With premium layout and digital power design to support more cores and provide better performance
-
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
-
Audio Boost: Reward your ears with studio grade sound quality
-
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
TECH SPECS:
|
Chipset
|
INTEL H470
|
|
CPU
|
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
|
|
Memory
|
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
|
|
Onboard Graphics
|
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
|
Slot
|
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
Audio
|
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
|
Storage
|
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
|
|
USB
|
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
|
|
LAN
|
Realtek® 8111H Gigabit LAN
|
|
Internal IO
|
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
|
|
LED FEATURE
|
4x EZ Debug LED
|
|

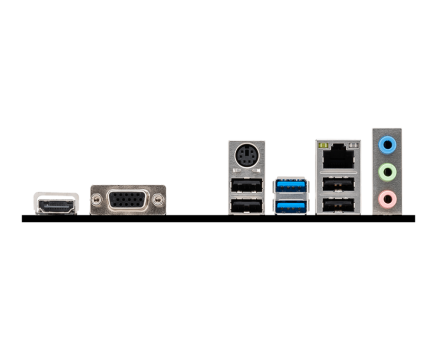

BACK PANEL PORTS
|
-
HDMI™
-
VGA
-
Keyboard / Mouse
-
USB 3.2 Gen 1 5Gbps (Type-A)
-
LAN port
-
Audio Connectors
-
USB 2.0
-
USB 2.0
|
|
OPERATING SYSTEM
|
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
