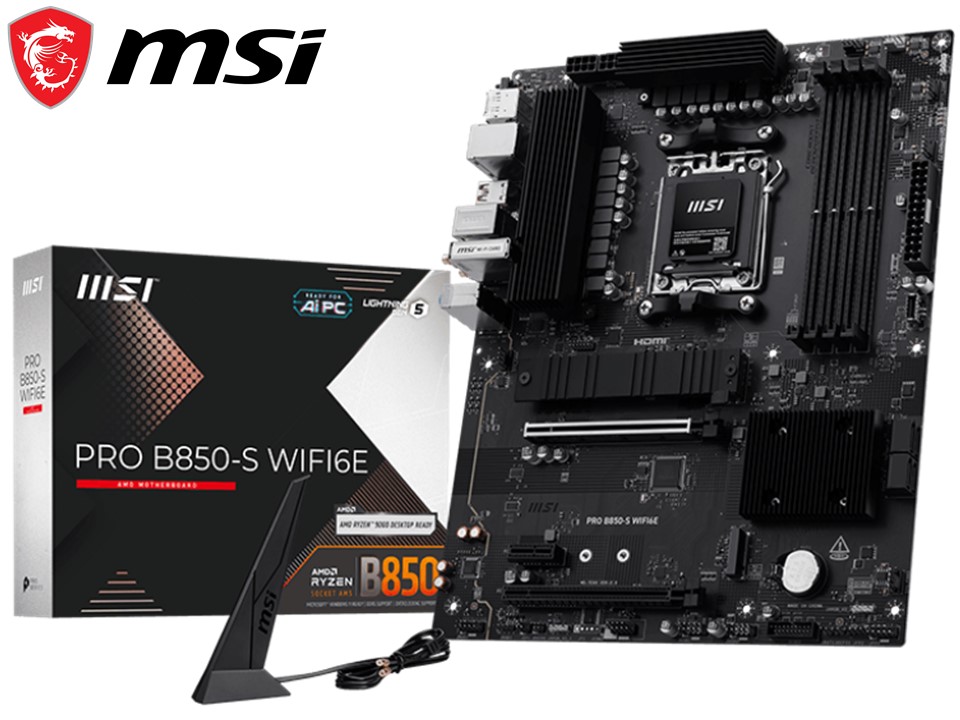

MSI PRO B850-S WIFI6E AMD Ryzen 9000 Series Gaming Motherboard
PRO B850-S WIFI6E offers a simple design with a harmonious color scheme that perfectly matches black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2 with M.2 Shield Frozr, ready for the AMD Ryzen™ 9000 series processors.
TECH SPECS:
CHIPSET AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
AUDIO Realtek® ALC897
7.1-Channel High Definition Audio
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Realtek® 8125 2.5G LAN
INTERNAL IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
