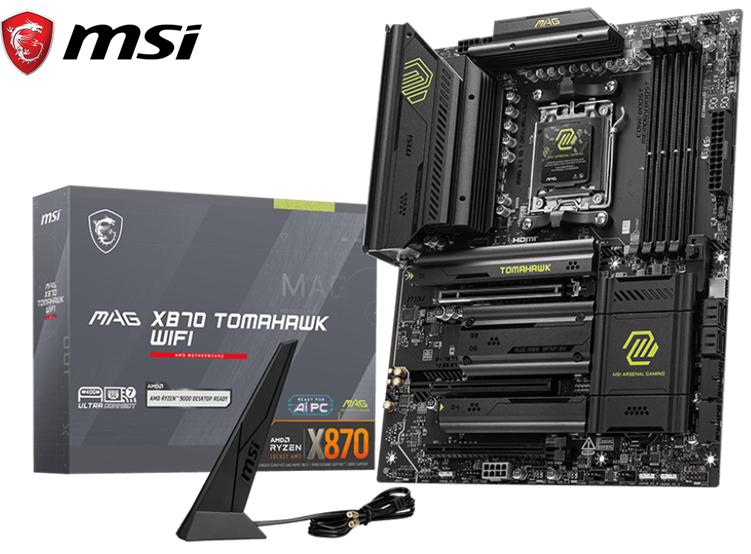

MSI MAG X870 TOMAHAWK WIFI DDR5 AMD Ryzen 9/8/7000 AM5 Series Gaming Motherboard
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
-
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
-
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
-
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
-
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
-
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
-
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
TECH SPECS:
|
Chipset
|
AMD X870
|
|
CPU
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
|
Memory
|
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
|
|
Onboard Graphics
|
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
|
|
Slot
|
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
|
|
Audio
|
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
|
|
Storage
|
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 & M2_2 slots
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
|
|
Multi-GPU
|
AMD MULTI-GPU Support
|
|
RAID
|
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
|
|
USB
|
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
|
|
LAN
|
Realtek® 8126-CG 5G LAN
|
|
Internal IO
|
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
|
|
WIRELESS LAN & BLUETOOTH
|
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
|
|
LED FEATURE
|
4x EZ Debug LED
1x EZ Digit Debug LED
|
