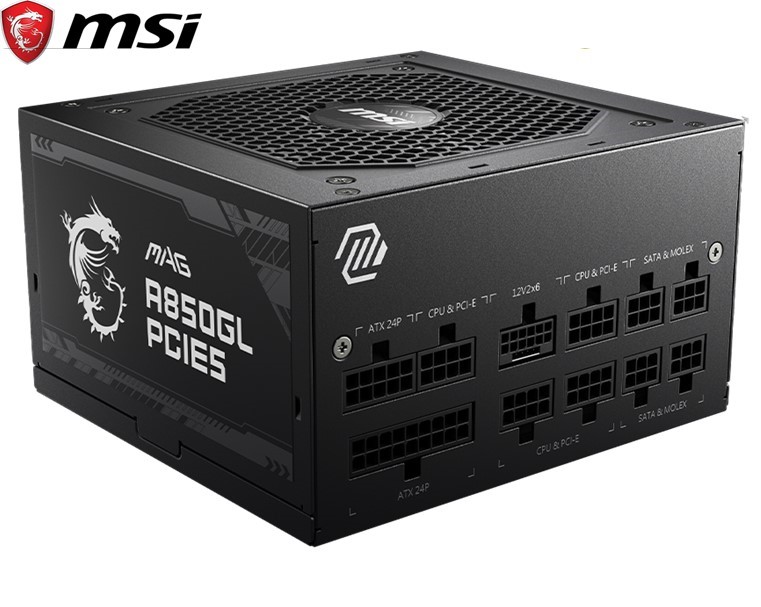

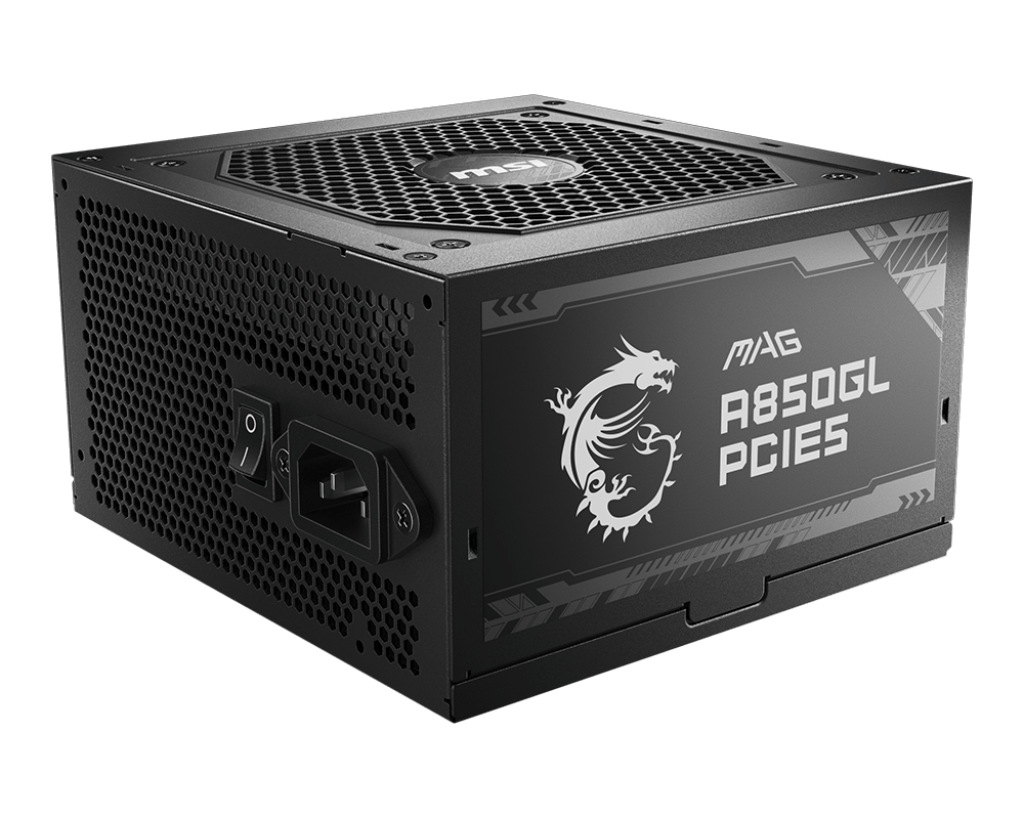

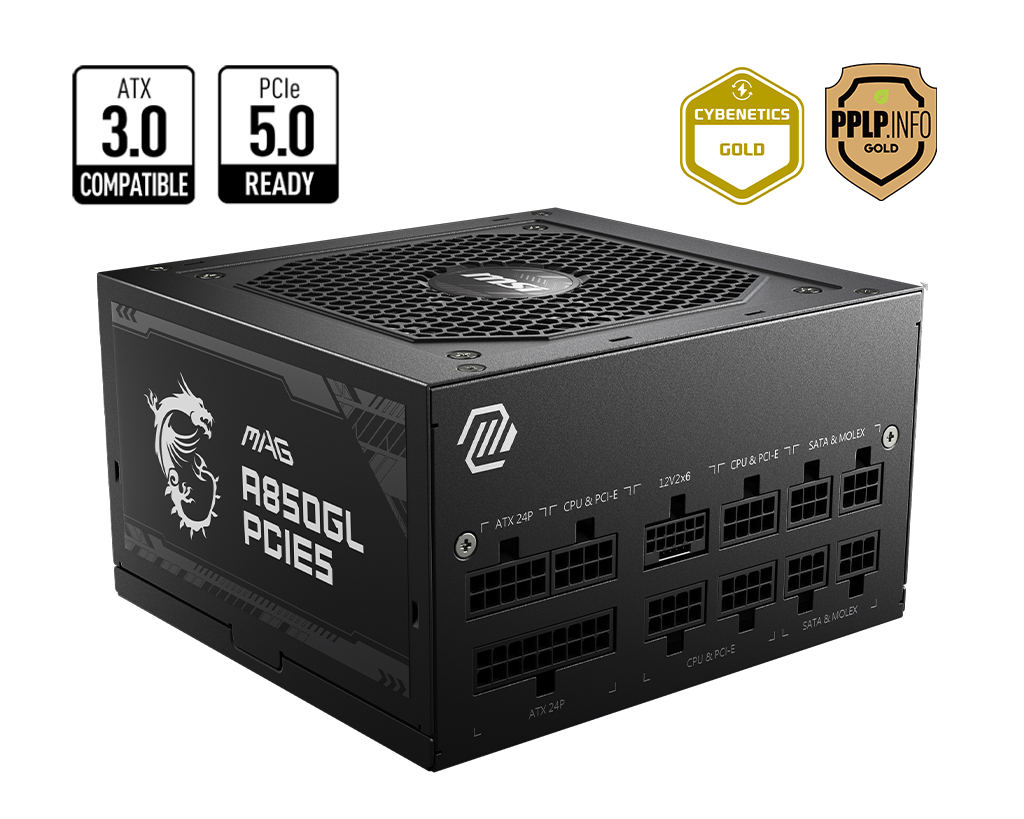

MSI MAG A850GL PCIE5 850W Full Modular 80+ Gold Power Supply Unit
-
ATX 3.0 compatible, native PCIe 5.0 connector
-
Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
-

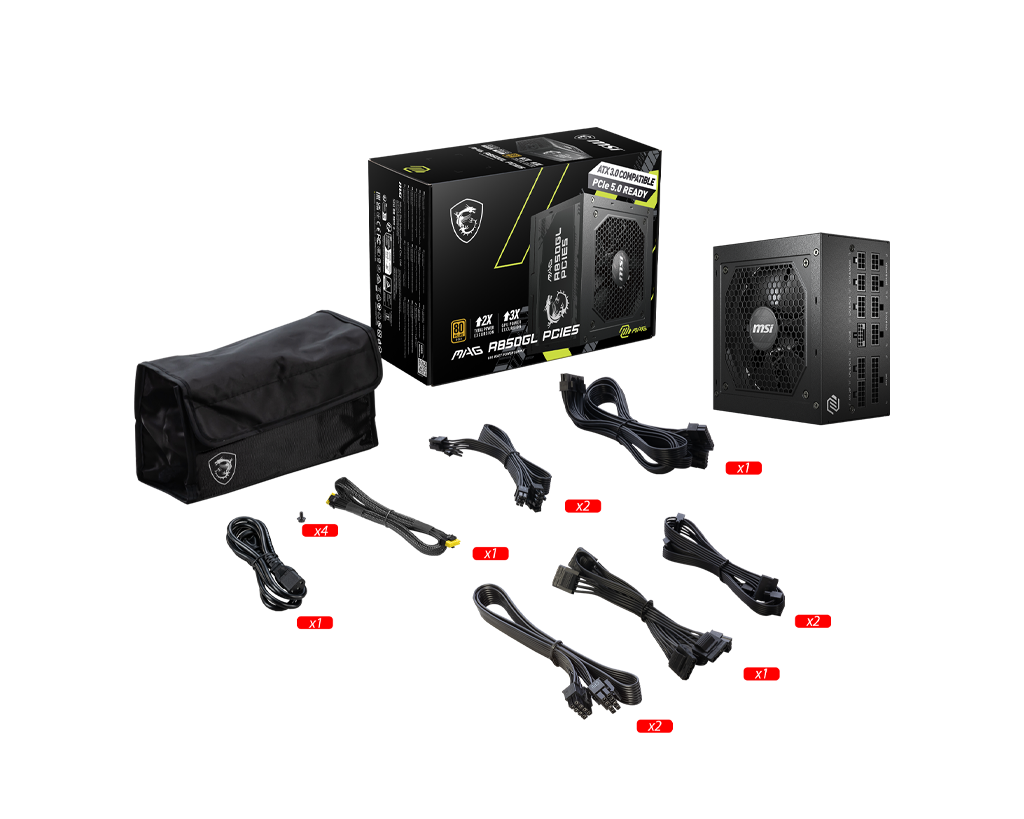

Full modular design,Flat cables
-
80 Plus Gold certified for high efficiency
-
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
-
120mm Fluid Dynamic Bearing Fan
-
LLC Full Bridge Topology with DC-DC module design
TECH SPECS:
|
General
|
|
Brand
|
MSI
|
|
Model
|
MAG A850GL PCIE5
|
|
Details
|
|
Color
|
Black
|
|
Type
|
ATX12V
|
|
Maximum Power
|
850 W
|
|
Fans
|
1 x 120 mm
|
|
PFC
|
Active
|
|
+12V Rails
|
Single
|
|
SATA Power Connector
|
8
|
|
Max PSU Length
|
150 mm
|
|
Modular
|
Full Modular
|
|
Energy-Efficient
|
80 PLUS GOLD Certified
|
|
Protection
|
OVP, OCP, OTP, OPP , SCP, UVP
|
|
Input Voltage
|
100 - 240 V
|
|
Input Frequency Range
|
47 - 63 Hz
|
|
Input Current
|
12A
|
|
Output
|
+3.3V@20A, +5V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A
|
|
Connectors
|
1 x MB (24/20 pins)
2 x CPU (8/4 pins)
4 x PCIe (8/6 pins)
1 x 12VHPWR (PCI-E 5.0)
8 x SATA
4 x Molex
1 x Molex to FDD Adapter
|
|
Dimension & Weight
|
|
Dimensions
|
11.81 * 8.66 * 4.92"
|
