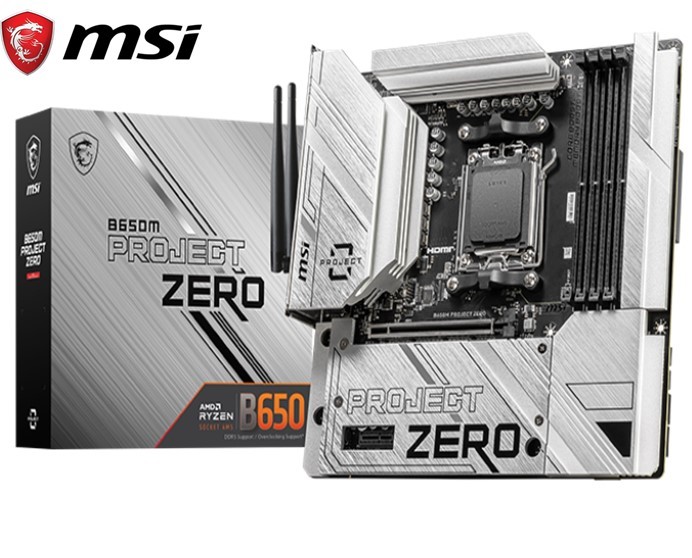

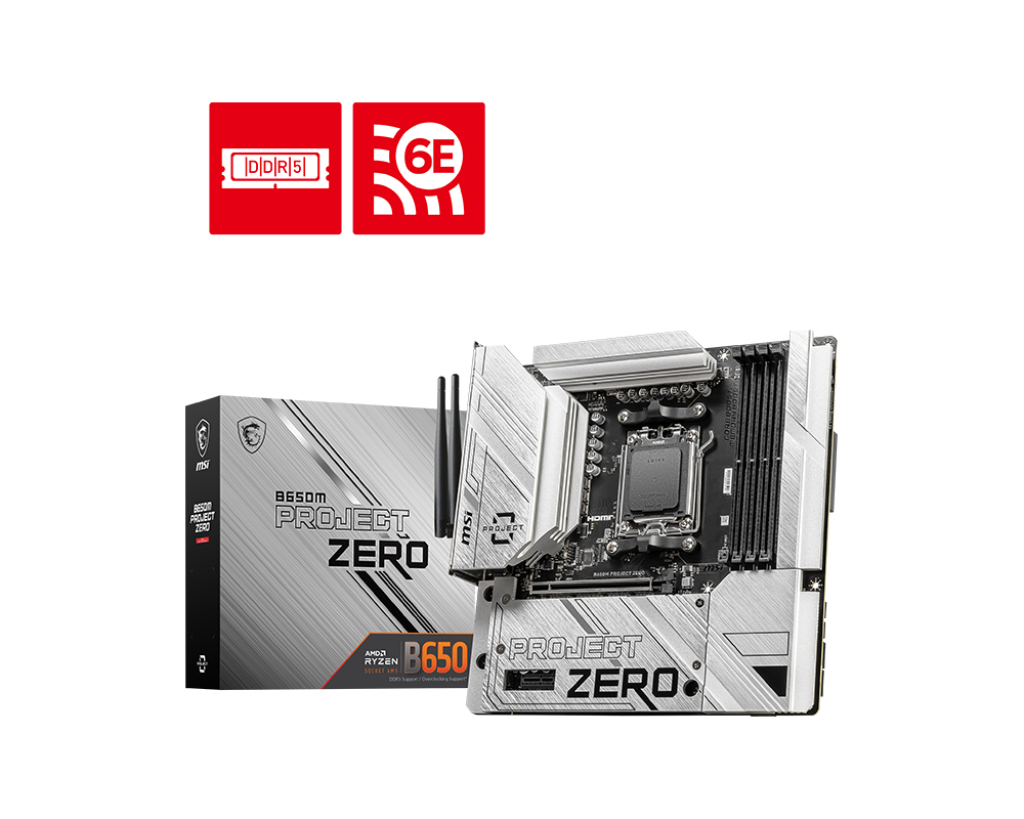

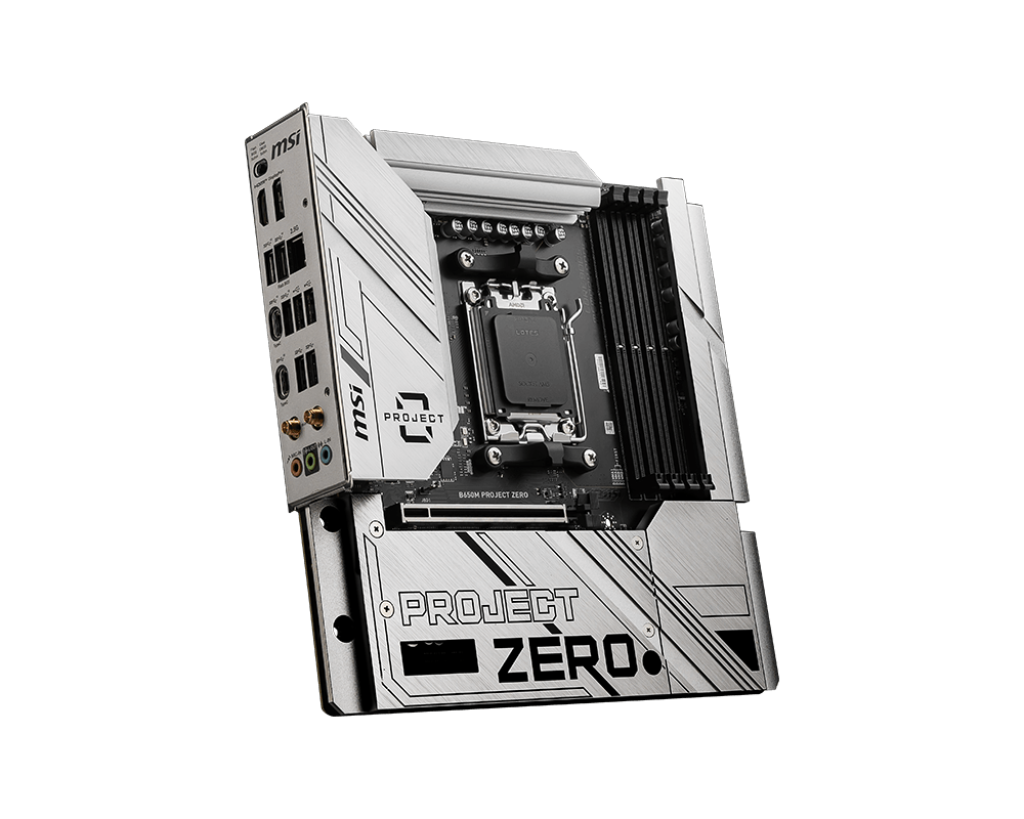

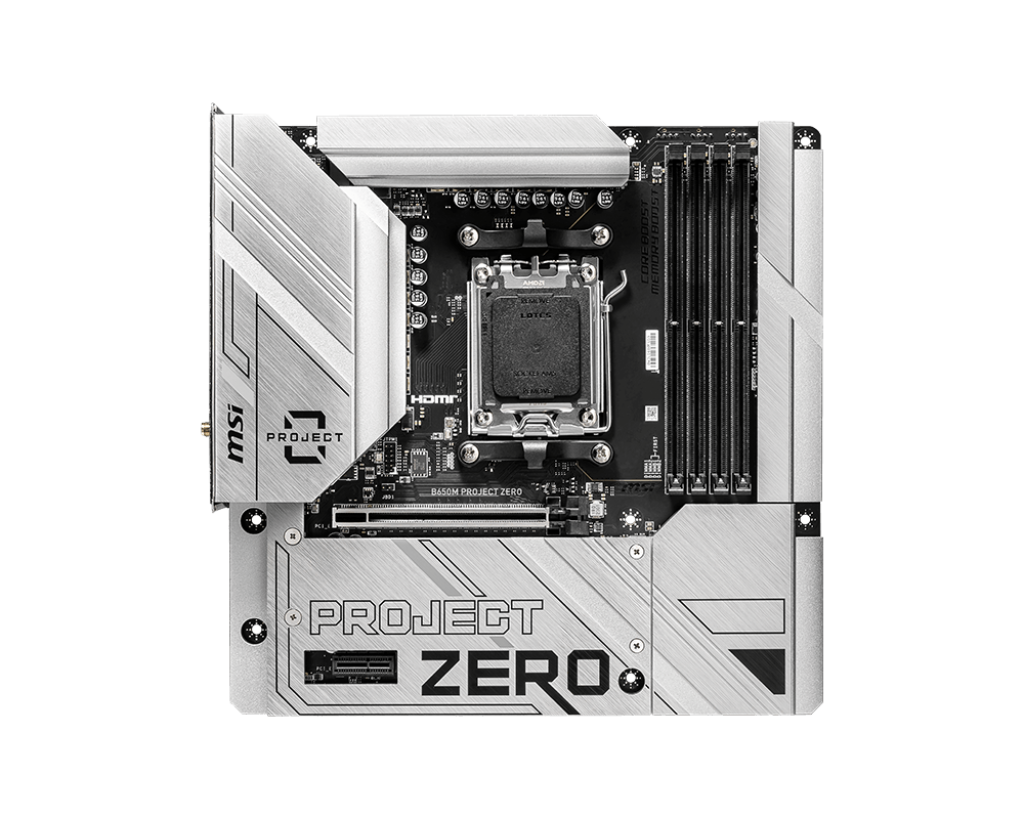

MSI B650M PROJECT ZERO DDR5 AMD Ryzen 9/8/7000 AM5 Series Gaming Motherboard
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, up to 7600+(OC) MHz
-
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
-
2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
-
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
-
Audio Boost: Reward your ears with studio grade sound
TECH SPECS:
|
Chipset
|
AMD B650
|
|
CPU
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
|
Memory
|
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
|
|
Onboard Graphics
|
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
|
Slot
|
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
Audio
|
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports up to 32-Bit/384 kHz playback on front panel
|
|
Storage
|
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
|
|
RAID
|
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
|
|

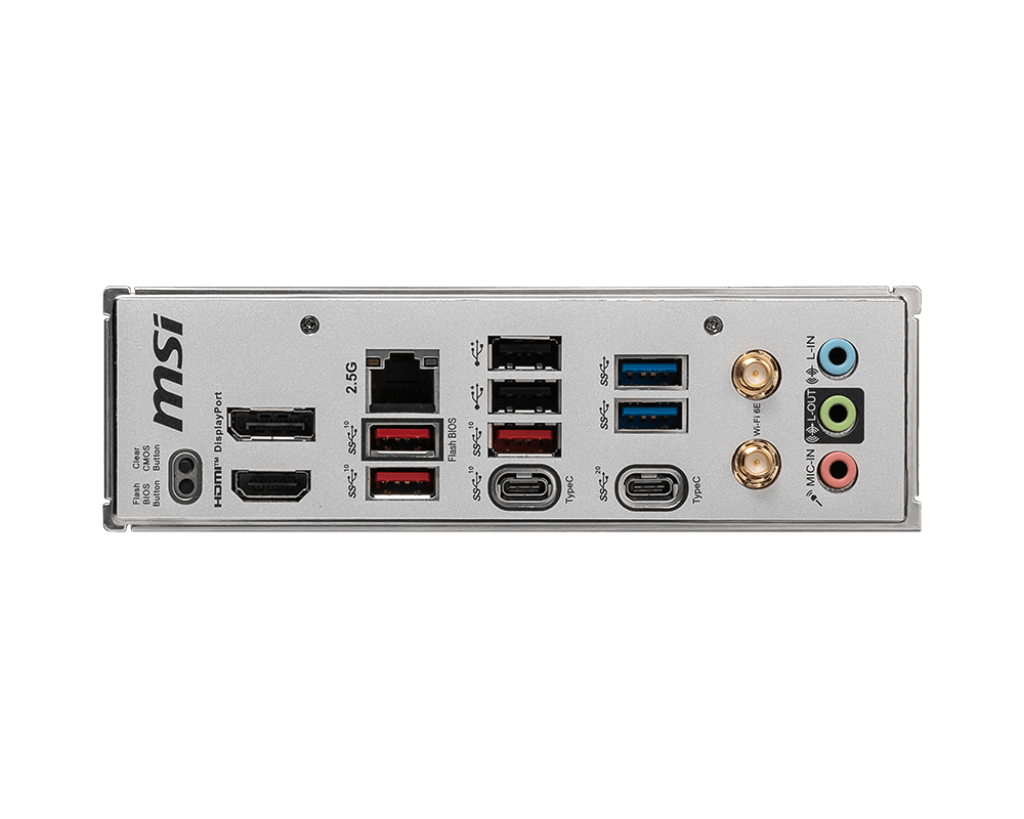

USB
|
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
|
|
LAN
|
Realtek® RTL8125BG 2.5Gbps LAN
|
|
Internal IO
|
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
|
|
WIRELESS LAN & BLUETOOTH
|
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
|
|
LED FEATURE
|
4x EZ Debug LED
|
