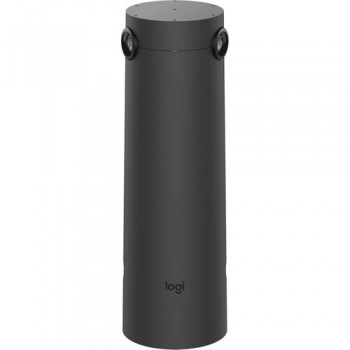

Logitech SIGHT Tabletop Intelligent Multi-Participant Framing Companion Camera

• TECH SPECS:

·DIMENSIONS

Table-mounted

• Height: 11.77 in (299 mm)

• Width: 6.65 in (169 mm)

• Depth: 6.65 in (169 mm)

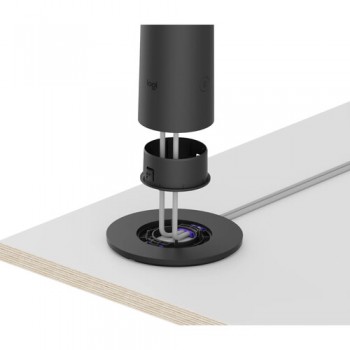

Grommet-mounted

• Height: 11.46 in (291.2 mm)

• Width: 3.68 in (93.4 mm)

• Depth: 3.68 in (93.4 mm)

• Grommet hole 25 mm or larger

Weight: 3.3 lbs (1.5 kg)

·

Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)

CAT Cable: Cat6 or greater

Maximum CAT Cable Length: Between Sight Dongle and Sight: 131.2 ft (40 m)

USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)

Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini

Latest version of Logitech Collab OS

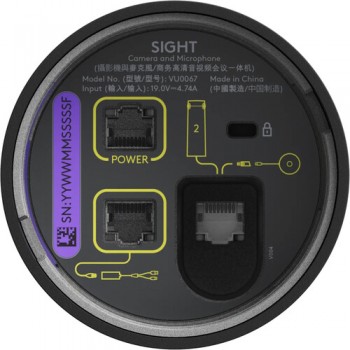

PORTS AND INTERFACES

• 1 x RJ45 (audio/video data over USB)

• 1 x RJ45 (Power Over Ethernet)

• 1 x RJ45 (Daisychain - Rally Mic Pods)

·

Video Platform Compatibility

• Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.

General Specifications

• Built-in Components

  • 7 beamforming microphones, dual lens camera, Logitech Collab OS platform

• Device Management

  • Logitech Sync

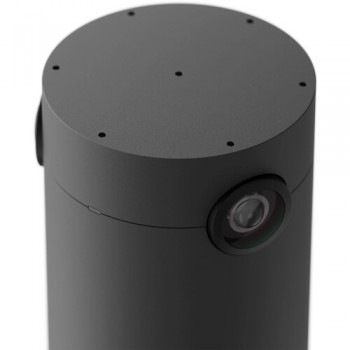

• Camera

  • Sensor resolution: 4K

  • Zoom: X1

  • Horizontal Field of View: 315°

  • Vertical Field of View: 97°

  • Diagonal Field of View: 180°

  • Focal Length: 0.07 in (1.87 mm)

  • Depth of Field: 19.69in (50 cm)-16.41ft (5 m)

  • Frame Rate (max): 60 fps

• Microphone Specifications

  • Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams

  • Pickup Range: 7.55 ft (2.3 m) radius

  • Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec

  • Frequency Response: 90Hz – 16 kHz

  • Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa

  • Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)

  • Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises

  • Additional mic pods

    • Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs

    • Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs

    • Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs

ENVIRONMENTALS

• Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)

• Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)

·

• Sight camera

• Sight dongle

• Mic pod dongle

• Privacy shade

• Grommet mount

• Table mount

• Tripod mount

• User documentation

•

·

Standard: 2-year limited hardware warranty included
Extended: Additional one- and three-year extended warranties available at the time of hardware purchase.
Contact your reseller for availability.

·

• Graphite : 960-001510
