Two top panel options: mesh or tempered glass
Vision mode with tempered glass for an uninterrupted view of components
Mesh mode with fan bracket for additional radiator or fan support
Supports up to 11 fans and a maximum of 360mm large radiator
Compatible with back-connect ATX motherboards
Hidden AIO tube design for a streamlined appearance
Dual-chamber layout with cable management compartment and cable holders
TECH SPECS:

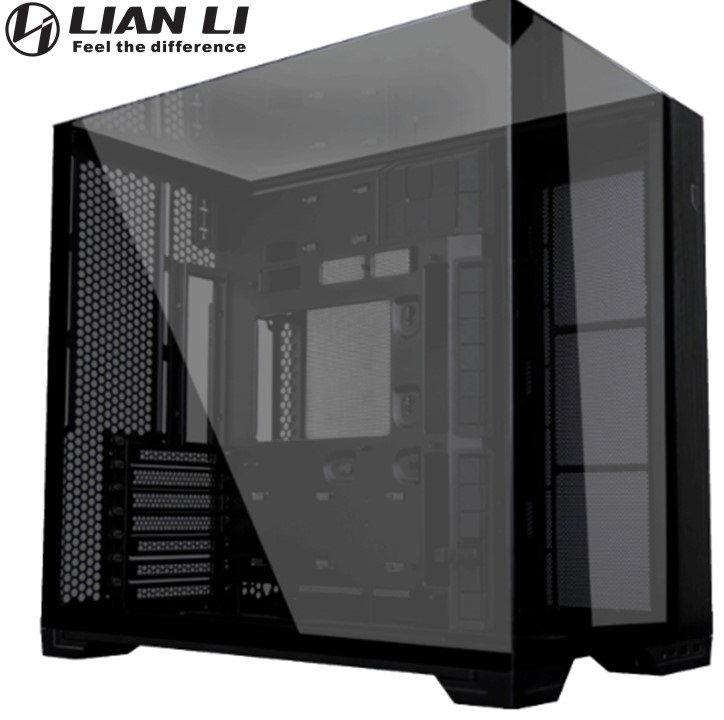

MODEL O11 VISION COMPACT
MODEL NO. O11VPX Black
COLOR Black
CASE TYPE Tower Chassis
DIMENSION (D)447.5mm x (W)287.5mm x (H)446.4mm
MATERIAL Steel,
4.0mm tempered glass,
3.0mm tempered glass,
Aluminium
MOTHERBOARD SUPPORT Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX
EXPANSION SLOT 6+1
STORAGE Behind MB Tray: 2 x 2.5″ SSD
Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD
GPU LENGTH CLEARANCE 408mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU SUPPORT ATX (Under 220mm)
FAN SUPPORT Top: 120mm x 3 or 140mm x 2
Side: 120mm x 3
Bottom: 120mm x 3
Rear: 120mm x 2
RADIATOR SUPPORT Top: 240mm x 1 or 280mm x 1 or 360mm x 1
Side: 240mm x 1 or 360mm x 1
Bottom: 240mm x 1 or 360mm x 1
I/O PORTS Power Button x 1
USB 3.0 x 2
USB 3.1 TYPE-C x 1
Audio x 1
DUST FILTER Bottom × 1
