up to 3300MB/s read, 1400MB/s write

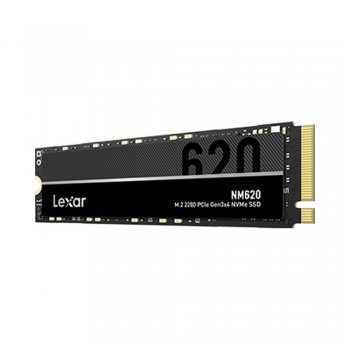

Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3300MB/s read and 1400MB/s write1. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
With speeds of up to 3300MB/s read, enjoy 6x the speed of SATA SSDs3. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.
Specification
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Performance
512GB —sequential read up to 3300MB/s, write up to 1400MB/s
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H)
80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
Weight
9g
Warranty
2 years limited warranty
Shock Resistant
1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW
1 TB: 500 TB, 512 GB: 250 TB,, 256 GB: 125 TB
DWPD
1 TB: 0.44, 512 GB: 0.44, 256 GB: 0.44
NAND flash
3D TLC
MTBF
1,500,000 Hours
1 Up to 3300MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.
2Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.
3Comparison based on internal testing. Actual performance may vary.
[Note]:]
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes.
Product appearance, performance, software offerings, and packaging may vary depending on ship date and available inventory.
Lexar is not liable for any loss of data or images.
