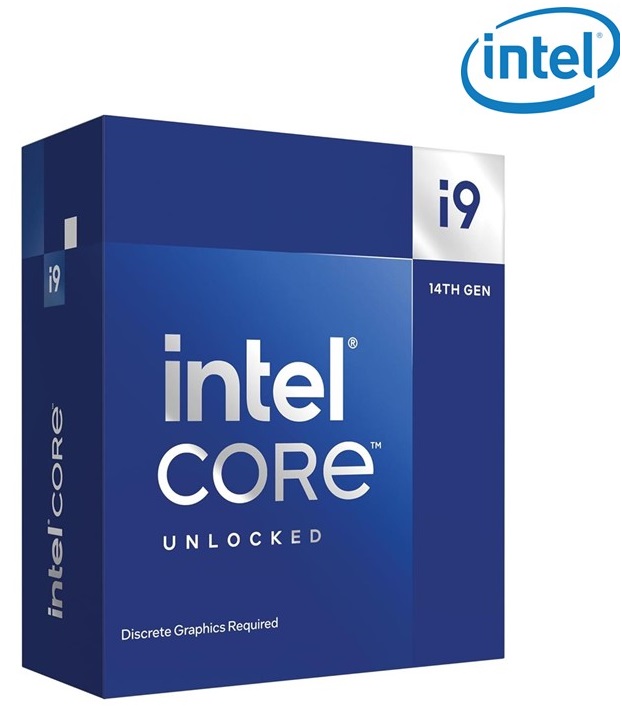

Intel Core i9-14900KF 14th Gen Processor (BOXED)
TECH SPECS:
Product CollectionIntel® Core™ i9 Processors (14th gen)
Code NameProducts formerly Raptor Lake
Vertical SegmentDesktop
Processor Number i9-14900KF
Lithography Intel 7
Recommended Customer Price $564.00-$574.00
CPU Specifications
Total Cores 24
# of Performance-cores8
# of Efficient-cores16
Total Threads 32
Max Turbo Frequency 6 GHz
Intel® Thermal Velocity Boost Frequency 6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.8 GHz
Performance-core Max Turbo Frequency 5.6 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Performance-core Base Frequency 3.2 GHz
Efficient-core Base Frequency 2.4 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache32 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q4'23
Embedded Options Available No
Use Conditions PC/Client/Tablet
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
Max Operating Temperature 100 °C
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Adaptive Boost TechnologyYes
Intel® Thermal Velocity Boost Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Intel® Secure Key Yes
Intel® OS GuardYes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
