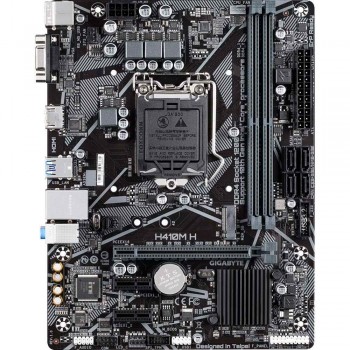

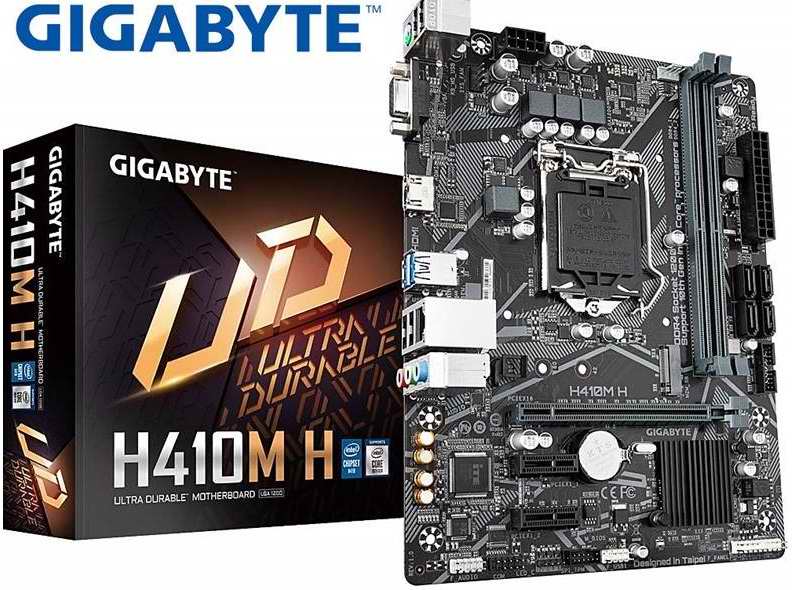

Intel^® Ultra Durable Motherboard with Intel^® GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

• Supports 10th Gen Intel^®Core™ Processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 8-Channel HD Audio with High Quality Audio Capacitors

• NVMe PCIe Gen3 x4 2280 M.2 Connector

• Intel^® GbE LAN with cFosSpeed Internet Accelerator Software

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• GIGABYTE APP Center, Simple and Easy Use

• Anti-Sulfur Resistors Design

Specifications:

CPU

1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset

  1. Intel^® H470 Express Chipset

• Memory

  1. Intel^® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules

  2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules

  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  4. Dual channel memory architecture

  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  7. Support for Extreme Memory Profile (XMP) memory modules

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

• Audio

  1. Realtek^® Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

• LAN

  1. Intel^® GbE LAN chip (1 Gbit/100 Mbit)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16

  2. 2 x PCI Express x1 slots
     (The PCI Express slots conform to PCI Express 3.0 standard.)

• Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

  2. 4 x SATA 6Gb/s connectors

  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10

  4. Intel^® Optane™ Memory Ready

• USB

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 1 x system fan header

  5. 1 x RGB LED strip header

  6. 4 x SATA 6Gb/s connectors

  7. 1 x front panel header

  8. 1 x front panel audio header

  9. 1 x USB 3.2 Gen 1 header

  10. 1 x USB 2.0/1.1 header

  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  12. 1 x serial port header

  13. 1 x Clear CMOS jumper

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port

  2. 1 x D-Sub port

  3. 1 x HDMI port

  4. 2 x USB 3.2 Gen 1 ports

  5. 4 x USB 2.0/1.1 ports

  6. 1 x RJ-45 port

  7. 3 x audio jack

  8.

• I/O Controller

  1. iTE^® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     Smart Backup
     System Information Viewer

  2. Support for Q-Flash

  3. Support for Xpress Install

• Bundled Software

  1. Norton^® Internet Security (OEM version)

  2. cFosSpeed

• Operating System

  1. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 22.6cm x 18.5cm

• Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
